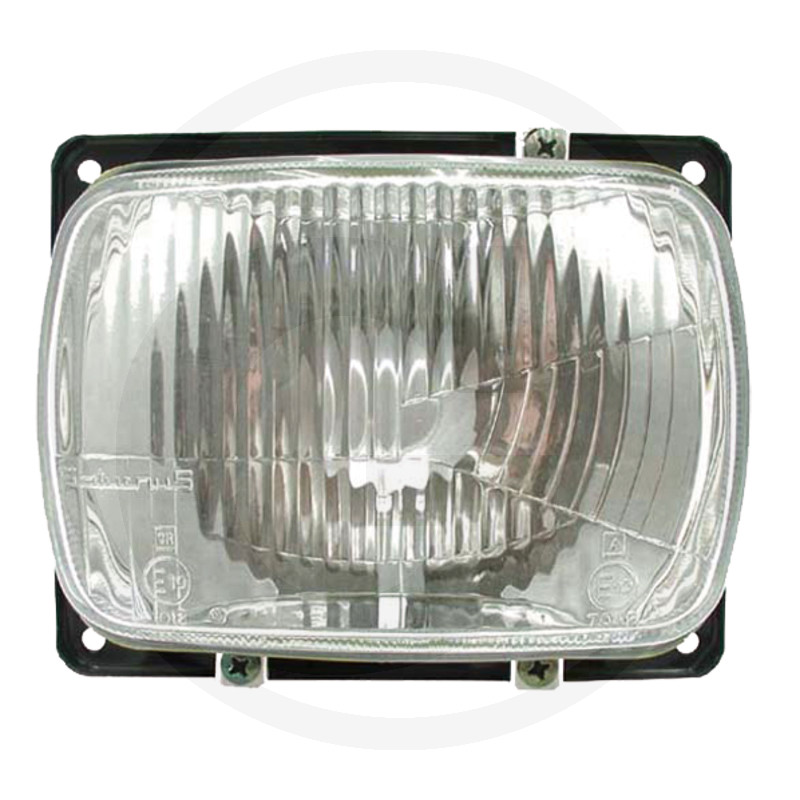

GRANIT Main headlight
Left/right
Part no.: 70717022
Further information
- Types:
- 446, 466, 566, 666, 766, 570, 670, 580, 680, 780, 880, 980, 1180, 1280, 1380, 1580, 1880,
65-46, 65-56, 70-56, 55-66, 60-66, 65-66, 70-66, 80-66, 55-90, 60-90, 70-90, 80-90, 85-90, 90-90, 95-90, 100-90, 110-90, 115-90, 130-90, 140-90, 160-90, 180-90, 60-93, 65-93, 72-93, 82-93, 60-94 - Bulb:
- 12V45/40WAS / R2
or 12V45/40W halogen / R2
24V55WAS / R2 - Material:
- Glass
- Dimensions W x H x D (mm):
- 192x133x126
- Installation location:
- Left/right
- Protection class:
- IP54
- Nominal voltage (V):
- 12 / 24
- Housing material:
- Metal
- Test mark:
- E20
- Power consumption (W):
- 55/50W, 4W, 75/70W
- Light function:
- Dipped beam, full beam, position light
- Additional information:
- Right-hand traffic
- Bulbs included:
- No
- Mounting type:
- Flush mounting
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 880 g
- Fig. no.:
- 5
- Catalogue:
- Electrics (p. 654)
- To be found in category:
- ElectricsLightingApplication listsAgricultural machineryFiat
