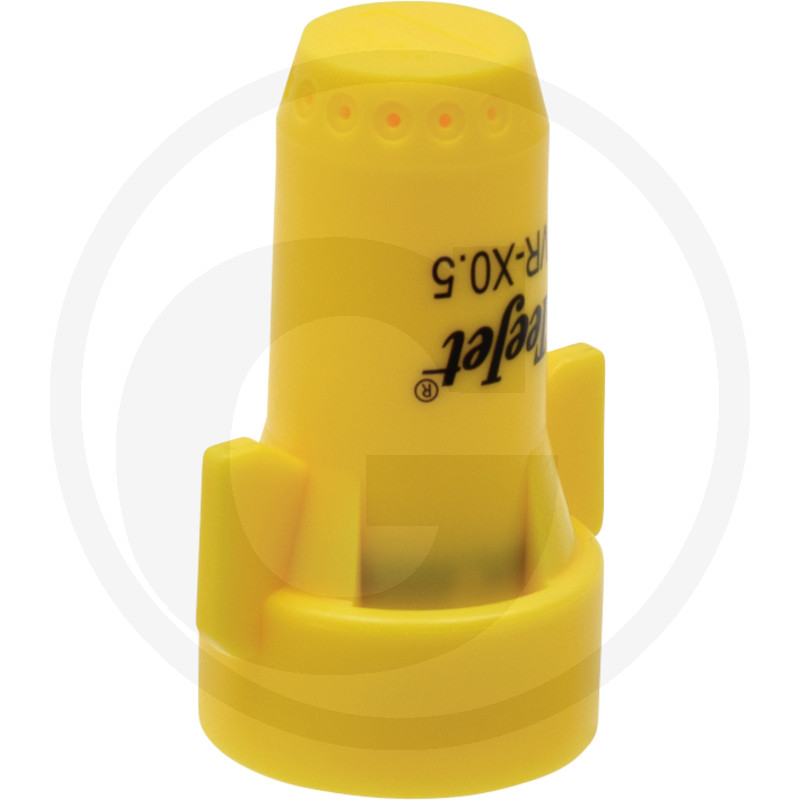

TeeJet Liquid fertiliser nozzle, 7-hole
Variable rate
Part no.: 670SJ7A-VR-X0.5
Further information
- Colour:
- Yellow
- Tip material:
- Plastic
- Housing material:
- Plastic
- Nozzle type:
- Liquid fertiliser nozzle, 7-hole
- Reference no.:
- SJ7A-VR-X0.5
- Weight:
- 14 g
- Catalogue:
- Plant spraying (p. 913)
The SJ7A-VR range for liquid fertiliser spreading achieves a variable volume flow by means of a elastomer metering cover with variable diameter - like four nozzles in one. With the standard, slightly extended pressure range, it is possible to drive effectively over larger speed and l/ha ranges without changing nozzles, perfect for area-specific application.
Features
• SJ7A-VR - seven uniform jets and extremely coarse droplets with excellent distribution
• Equal-sized droplets minimise the risk of chemical burns and ensure that practically no drift occurs
• Nozzle body and baffle made of acetal with high chemical resistance for a long service life
• Simple, reliable EPDM elastomer dosing orifice with variable diameter
• Pressure range 2.0 to 5.5 bar (30 to 80 psi)
• VR nozzles are only suitable for volumetric flow regulation
• Three different nozzle sizes cover the 9 common sizes in the standard SJ7 range
