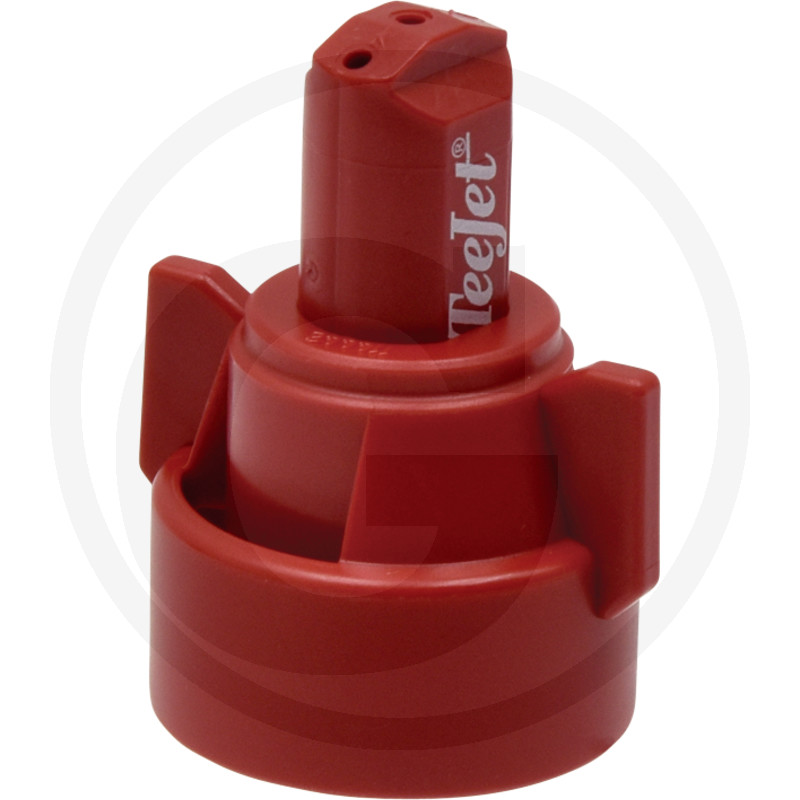

TeeJet Liquid fertiliser nozzle, 3-hole
Variable rate, red
Part no.: 670SJ3-VR-X1.0
670SJ3-VR
Further information
- Colour:
- Red
- Tip material:
- Plastic
- Housing material:
- Plastic
- Nozzle type:
- Liquid fertiliser nozzle, 3-hole
- Reference no.:
- SJ3-VR-X1.0
- Weight:
- 14 g
- Catalogue:
- Plant spraying (p. 913)
The SJ3 range for liquid fertiliser spreading achieves a variable volume flow by means of a elastomer metering cover with variable diameter - like five nozzles in one. With the pressure range extended to 7 bar, it is possible to drive effectively over larger speed and l/ha ranges without changing nozzles, perfect for area-specific application.
Features
• SJ3-VR - three uniform jets that are aimed directly at the target area
• Equal-sized droplets minimise the risk of chemical burns and ensure that practically no drift occurs
• Nozzle body and baffle made of acetal with high chemical resistance for a long service life
• Simple, reliable EPDM elastomer dosing orifice with variable diameter
• Pressure range 1.5 to 7.0 bar (20 to 100 psi)
• VR nozzles are only suitable for volumetric flow regulation
• Three different nozzle sizes cover the 10 common sizes in the standard SJ3 range
