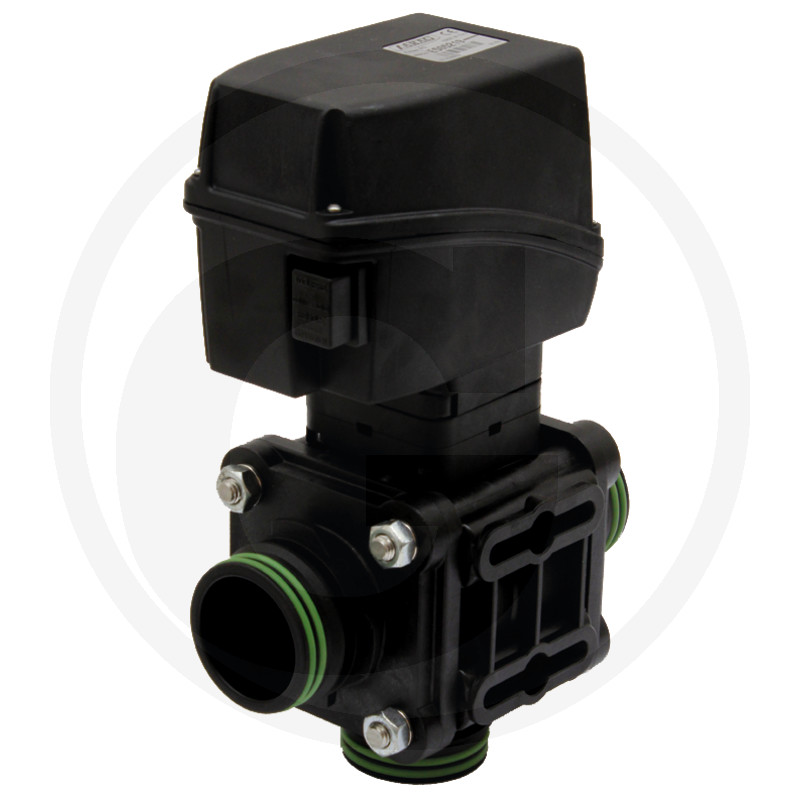

ARAG Control valve
Electric, series 853
Part no.: 670853G7A00A
Further information
- Version:
- Specific valve for use with computers BRAVO and DELTA
- Pressure (bar):
- 12
- Flow rate (l/min):
- 480
- Connection:
- Inner Ø, Outer Ø and ByPass T6
- Weight:
- 4,70 kg
Control valves derived from the 853 series ball valves. Identical in terms of properties, they are equipped with plug, modular and fork connections that enable flexible configuration and adaptation to every requirement.
• High application rate (290 litres per section)
• Working pressure: 12 bar
• New modular system with fork connection
• Fast, easy and compact assembly • Stainless steel pivot pin
• TEFLON-coated stainless steel ball AISI 316
• Ball seats made of TEFLON®
• Internal O-rings made of VITON®
• Clamping devices for flange fastening made of stainless steel, protected by the valve housing
• Electric drive: 12 V
• High application rate (290 litres per section)
• Working pressure: 12 bar
• New modular system with fork connection
• Fast, easy and compact assembly • Stainless steel pivot pin
• TEFLON-coated stainless steel ball AISI 316
• Ball seats made of TEFLON®
• Internal O-rings made of VITON®
• Clamping devices for flange fastening made of stainless steel, protected by the valve housing
• Electric drive: 12 V
