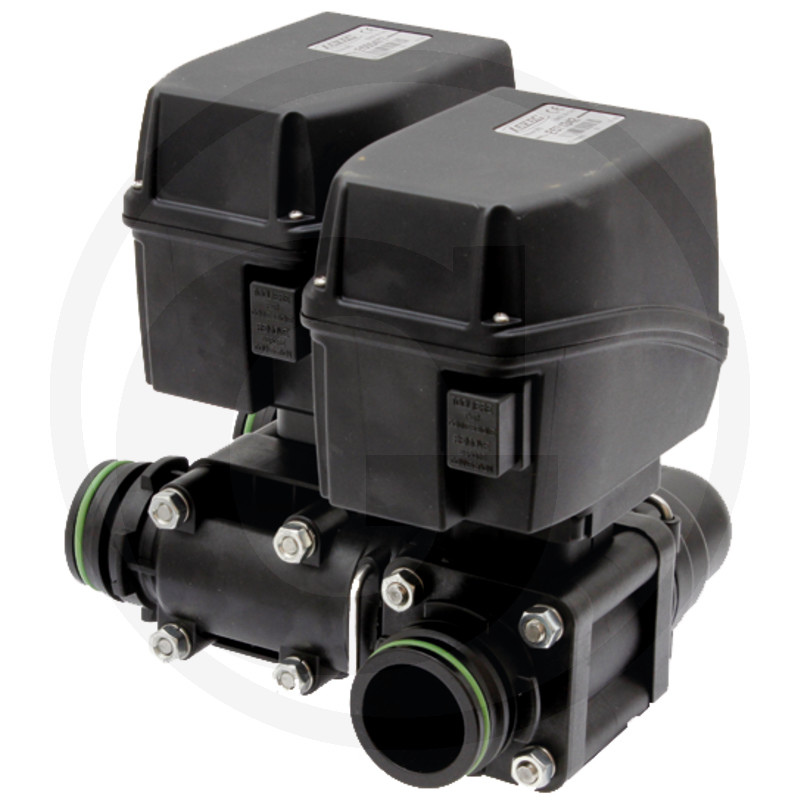

ARAG Main switching ball valve
Electric, series 853
Part no.: 670853814SA6
Further information
- Version:
- Outer Ø for valves series 463 and 863
- Pressure (bar):
- 12
- Volts:
- 12V / 3A
- Switching time (seconds):
- 1,4
- Flow rate (l/min):
- 480
- Connection:
- T6
Control valves derived from the 853 series ball valves. Identical in terms of properties, they are equipped with plug, modular and fork connections that enable flexible configuration and adaptation to every requirement.
• High application rate (290 litres per section)
• Working pressure: 12 bar
• New modular system with fork connection
• Fast, easy and compact assembly • Stainless steel pivot pin
• TEFLON-coated stainless steel ball AISI 316
• Ball seats made of TEFLON®
• Internal O-rings made of VITON®
• Clamping devices for flange fastening made of stainless steel, protected by the valve housing
• Electric drive: 12 V
• High application rate (290 litres per section)
• Working pressure: 12 bar
• New modular system with fork connection
• Fast, easy and compact assembly • Stainless steel pivot pin
• TEFLON-coated stainless steel ball AISI 316
• Ball seats made of TEFLON®
• Internal O-rings made of VITON®
• Clamping devices for flange fastening made of stainless steel, protected by the valve housing
• Electric drive: 12 V
Special item: cannot be returned or cancelled. Additional shipping costs may be incurred. Delivery time subject to availability from the supplier.
