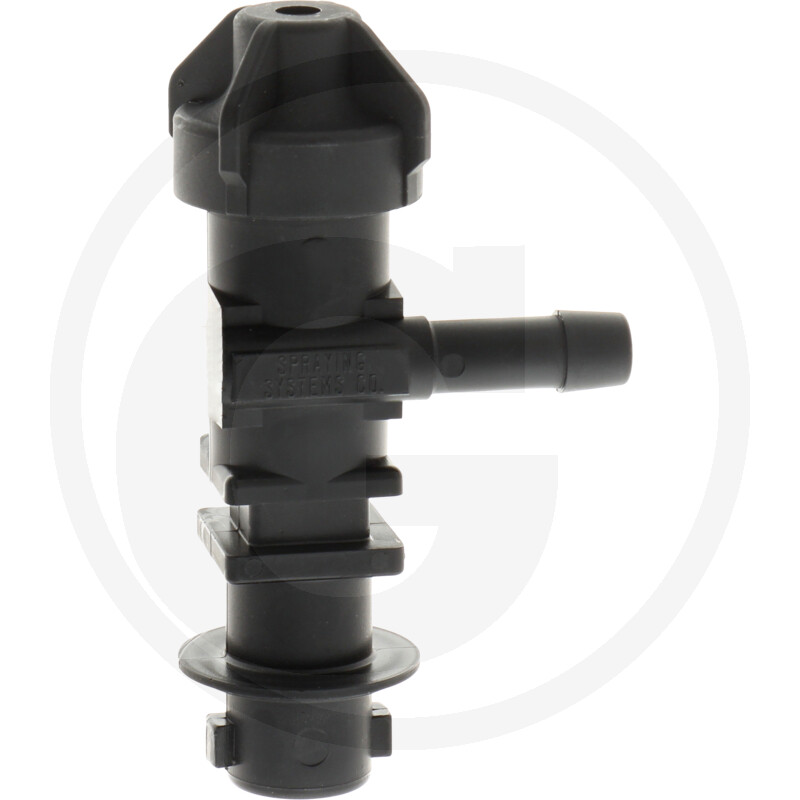

TeeJet Nozzle holder single 3/4"
for hose connection including ChemSaver® diaphragm check valve located at top
Part no.: 67022251-311-750-NYB
Further information
- Operating pressure max. (bar):
- 20
- Hose connection (mm):
- 19
- Reference no.:
- 22251-311-750-NYB
- Hose connection (inches):
- 3/4"
- Weight:
- 10 g
Quick TeeJet QJ300 Series nozzle body
• Lower overall height due to diaphragm housing located at top
• ChemSaver® diaphragm check valve for drip-free shutdown. Standard diaphragm opens at 0.7 bar
• Maximum operating pressure: 20 bar
• Maximum flow rate: 8.5 l/min at 0.34 bar pressure drop; 12.0 l/min at 0.69 bar pressure drop
• Lower overall height due to diaphragm housing located at top
• ChemSaver® diaphragm check valve for drip-free shutdown. Standard diaphragm opens at 0.7 bar
• Maximum operating pressure: 20 bar
• Maximum flow rate: 8.5 l/min at 0.34 bar pressure drop; 12.0 l/min at 0.69 bar pressure drop
