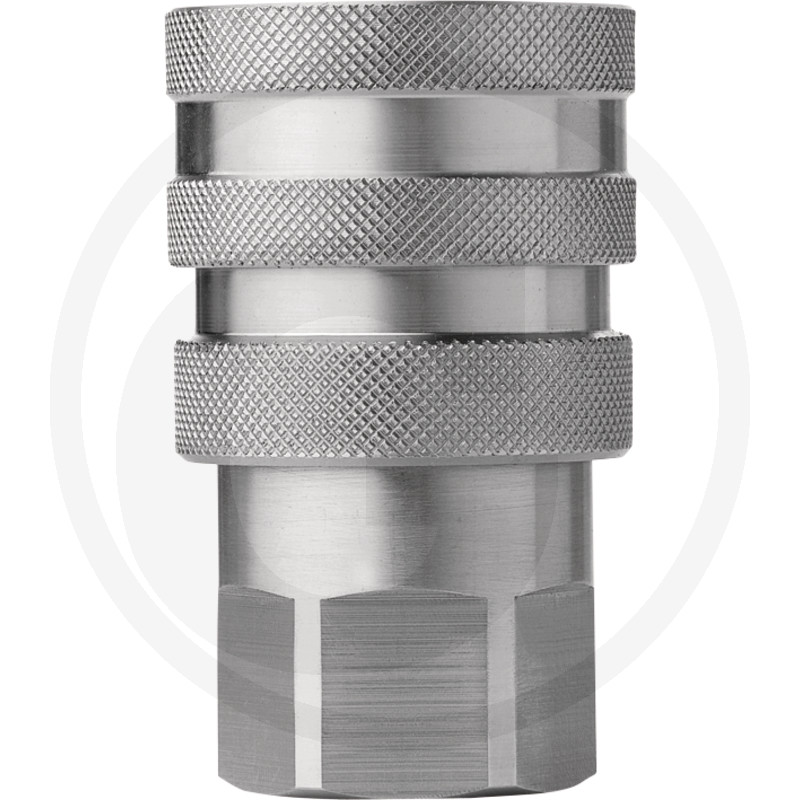

Cejn Coupling 1/2" female thread, FKM, stainless steel
Part no.: 6230000321
Further information
- Nominal width DN:
- 12,5
- Connection thread:
- 1/2” thread (BSP)
- Size:
- 08
- Volume flow max. (l/min):
- 108
- Operating pressure max. (bar):
- 250
- Seal material:
- FKM/FPM
- Length:
- 67,6 mm
- Diameter (mm):
- 41
- Nominal width (inches):
- 1/2"
- Burst pressure (bar):
- Gekuppelt 1200 bar, entkuppelt: 1000 bar
- Weight:
- 345 g
- EAN codes:
- 07391390247216
- Catalogue:
- Hydraulics & pneumatics (p. 541)
Series 526 - high-performance couplings made of stainless steel
• Double sealed for leak-free coupling
• Long service life
• Additional locking ring
• Temperature range: -30°C - +100°C (-22°F - +212°F)
• Seal material: fluoroelastomer material (FKM, FPM) when using plant-based media
• Material: stainless steel
• Coupling capability: without pressure
• Uncoupling under pressure: inadmissible
• Compatible with: Parker Tema T series
Max. operating pressure:
DN 6 coupled 250 bar, uncoupled: 250 bar,
DN 10 coupled 300 bar, uncoupled: 250 bar,
DN 12.5 coupled 300 bar, uncoupled: 250 bar,
DN 20 coupled 200 bar, uncoupled: 200 bar,
DN 25 coupled 200 bar, uncoupled: 150 bar
Min. burst pressure:
DN 6 coupled 1000 bar, uncoupled: 1000 bar,
DN 10 coupled 1200 bar, uncoupled: 1000 bar,
DN 12.5 coupled 1200 bar, uncoupled: 1000 bar,
DN 20 coupled 1000 bar, uncoupled: 800 bar,
DN 25 coupled 800 bar, uncoupled: 600 bar
• Double sealed for leak-free coupling
• Long service life
• Additional locking ring
• Temperature range: -30°C - +100°C (-22°F - +212°F)
• Seal material: fluoroelastomer material (FKM, FPM) when using plant-based media
• Material: stainless steel
• Coupling capability: without pressure
• Uncoupling under pressure: inadmissible
• Compatible with: Parker Tema T series
Max. operating pressure:
DN 6 coupled 250 bar, uncoupled: 250 bar,
DN 10 coupled 300 bar, uncoupled: 250 bar,
DN 12.5 coupled 300 bar, uncoupled: 250 bar,
DN 20 coupled 200 bar, uncoupled: 200 bar,
DN 25 coupled 200 bar, uncoupled: 150 bar
Min. burst pressure:
DN 6 coupled 1000 bar, uncoupled: 1000 bar,
DN 10 coupled 1200 bar, uncoupled: 1000 bar,
DN 12.5 coupled 1200 bar, uncoupled: 1000 bar,
DN 20 coupled 1000 bar, uncoupled: 800 bar,
DN 25 coupled 800 bar, uncoupled: 600 bar
