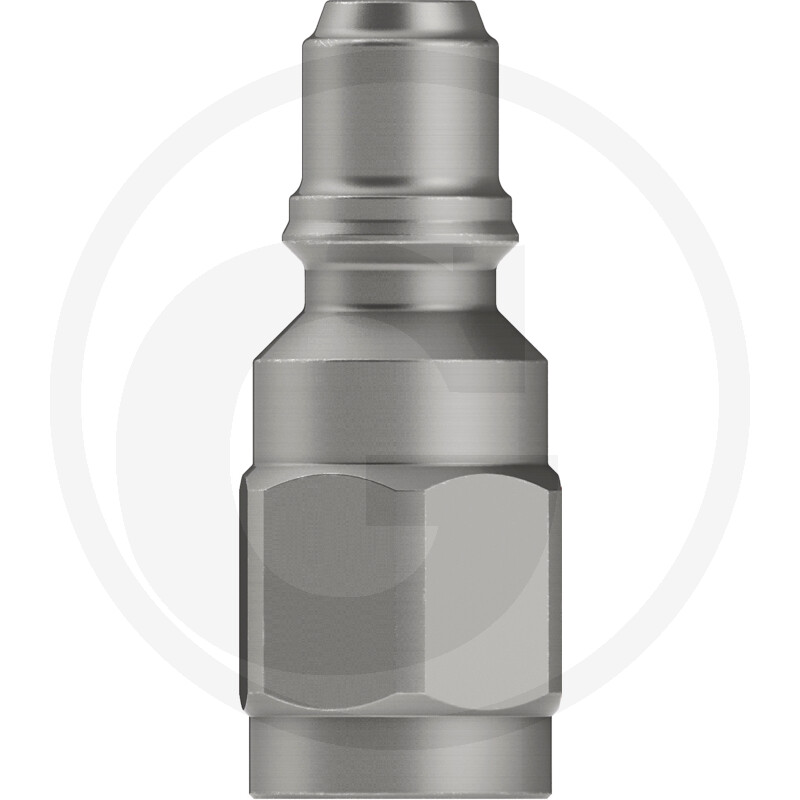

Cejn Plug 1/4" female thread, NBR, without valve
Part no.: 6230000301
Further information
- Nominal width DN:
- 6
- Connection thread:
- 1/4” thread
- Size:
- 04
- Volume flow max. (l/min):
- 24
- Operating pressure max. (bar):
- 300
- Seal material:
- NBR
- Length:
- 48,2 mm
- Diameter (mm):
- 21
- Nominal width (inches):
- 1/4"
- Burst pressure (bar):
- Gekuppelt 1800 bar, entkuppelt: 1200 bar
- AF (mm):
- 19
- Weight:
- 46 g
- EAN codes:
- 07391390246929
- Catalogue:
- Hydraulics & pneumatics (p. 540)
Series 525 - high-performance couplings made of steel, without valve
• Double sealed for leakage-free coupling
• Long service life
• Additional locking ring
• Temperature range: -30°C - +100°C (-22°F - +212°F)
• Seal material: nitrile rubber (NBR) / alternative fluoroelastomer material (FKM, FPM) when using plant-based media
• Material: steel (zinc-nickel coating)
• Coupling capability: without pressure
• Uncoupling under pressure: inadmissible
• Compatible with: Parker Tema T series
Max. operating pressure:
DN 6 coupled 450 bar, uncoupled: 300 bar,
DN 10 coupled 350 bar, uncoupled: 280 bar,
DN 12.5 coupled 300 bar, uncoupled: 250 bar,
DN 20 coupled 280 bar, uncoupled: 200 bar,
DN 25 coupled 250 bar, uncoupled: 250 bar
Min. burst pressure:
DN 6 coupled 1800 bar, uncoupled: 1200 bar,
DN 10 coupled 1300 bar, uncoupled: 1100 bar,
DN 12.5 coupled 1100 bar, uncoupled: 1000 bar,
DN 20 coupled 1000 bar, uncoupled: 800 bar,
DN 25 coupled 930 bar, uncoupled: 1000 bar
• Double sealed for leakage-free coupling
• Long service life
• Additional locking ring
• Temperature range: -30°C - +100°C (-22°F - +212°F)
• Seal material: nitrile rubber (NBR) / alternative fluoroelastomer material (FKM, FPM) when using plant-based media
• Material: steel (zinc-nickel coating)
• Coupling capability: without pressure
• Uncoupling under pressure: inadmissible
• Compatible with: Parker Tema T series
Max. operating pressure:
DN 6 coupled 450 bar, uncoupled: 300 bar,
DN 10 coupled 350 bar, uncoupled: 280 bar,
DN 12.5 coupled 300 bar, uncoupled: 250 bar,
DN 20 coupled 280 bar, uncoupled: 200 bar,
DN 25 coupled 250 bar, uncoupled: 250 bar
Min. burst pressure:
DN 6 coupled 1800 bar, uncoupled: 1200 bar,
DN 10 coupled 1300 bar, uncoupled: 1100 bar,
DN 12.5 coupled 1100 bar, uncoupled: 1000 bar,
DN 20 coupled 1000 bar, uncoupled: 800 bar,
DN 25 coupled 930 bar, uncoupled: 1000 bar
