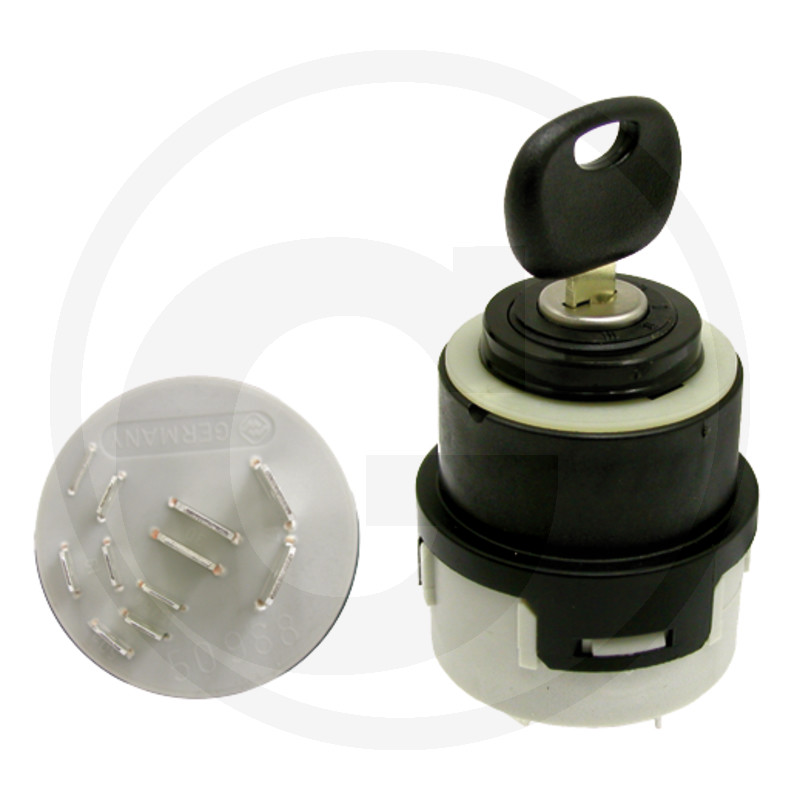

GRANIT Start switch
12 V/24 V
Part no.: 50770596029
Further information
- Types:
- AgroPrima 4.31, 4.51, 4.56, 6.06, 6.16
AgroXtra 3.57, 4.07, 4.17, 4.47, 4.57, 6.07, 6.17
DX 85, 90, 110, 120, 145, 160, 230, 250
DX 3.10, 3.10SC, 3.10V, 3.30, 3.50, 3.50V/F, 3.60, 3.65, 3.70, 3.75, 3.80, 3.90, 4.10, 4.30, 4.50, 4.70, 6.05, 6.10, 6.30, 6.50, 7.10
Hopfen DX 4.17, 4.57 - Version:
- • With 2 moulded reversible safety keys made of nickel silver
• For central locking systems
• Waterproof DIN 400 50, IP63
• With dust protection flap
• Installation opening Ø 28 mm
• Brass fixing nut
• Blade terminals 4 x 9.5 mm / 6 x 6.3 mm
• Switch positions:
- park - 0 - ignition - preheat - start - Mounting Ø (mm):
- 28
- Switching stages:
- P-0-1-2-3
- Plug:
- 10
- Voltage range (V):
- 12-24V
- Locking number:
- 14603
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 180 g
- EAN codes:
- 4026736057831
- Catalogue:
- Electrics (p. 1183)
- Landingpage:
- Click here
- To be found in category:
- ElectricsSwitches/controlsApplication listsDeutz-Fahr
