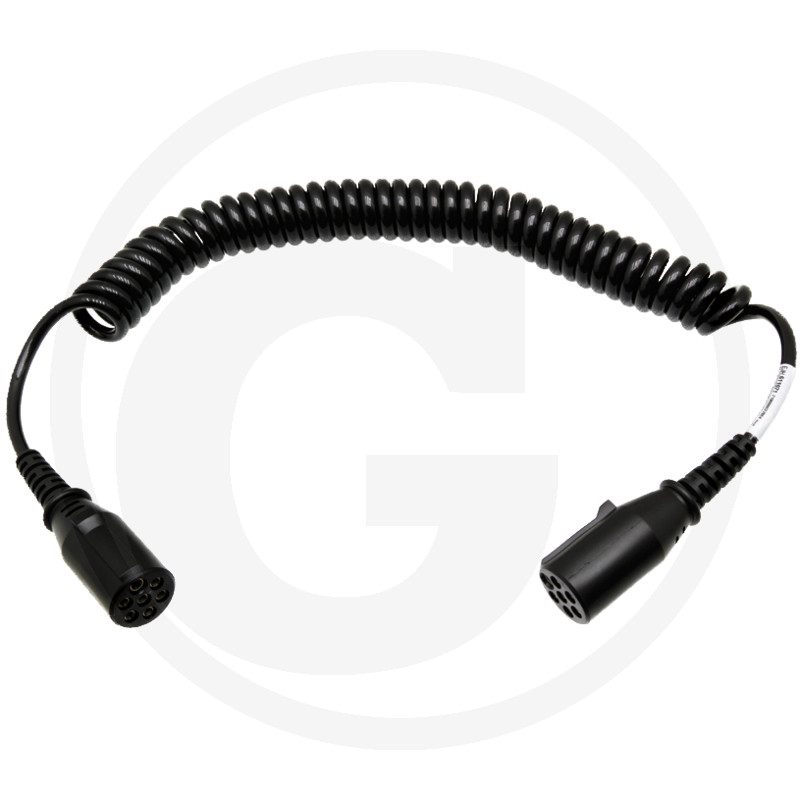

GRANIT Spiral cable
Flexible spiral cable, with 2 injection-moulded 7-pin plastic plugs, spiral diameter: 36 mm, 24 V, DIN/ISO 4141-4 (similar), 6 x 1 + 1 x 1.5 mm²
Part no.: 50751276520
Further information
- Version:
- With 2 injection-moulded 7-pin plastic plugs (type: N), spiral diameter: 36 mm, 24 V, ISO 1185, similar to DIN/ISO 4141-4, material: PU, 6x 1 + 1x 1.5 mm², working length: 3.0 m, max. extended length: approx. 4.5 m
- Colour:
- Black
- Outer Ø (mm):
- 36
- Cross section (mm²):
- 6 x 1,0 + 1 x 1,5
- Max. extended length (m):
- 4,5
- Voltage (V):
- 24
- Housing material:
- Plastic
- Number of pins:
- 7
- Working length (m):
- 3
- DIN/ISO:
- 1185
- Temperature range (°C):
- -40.0 - 85.0
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 748 g
- EAN codes:
- 4026736398576
- Catalogue:
- Electrics (p. 1082)
- To be found in category:
- ElectricsConnection technologyCables/electrical cablesIntermediate cableABS spiral cables
ISO 7638
