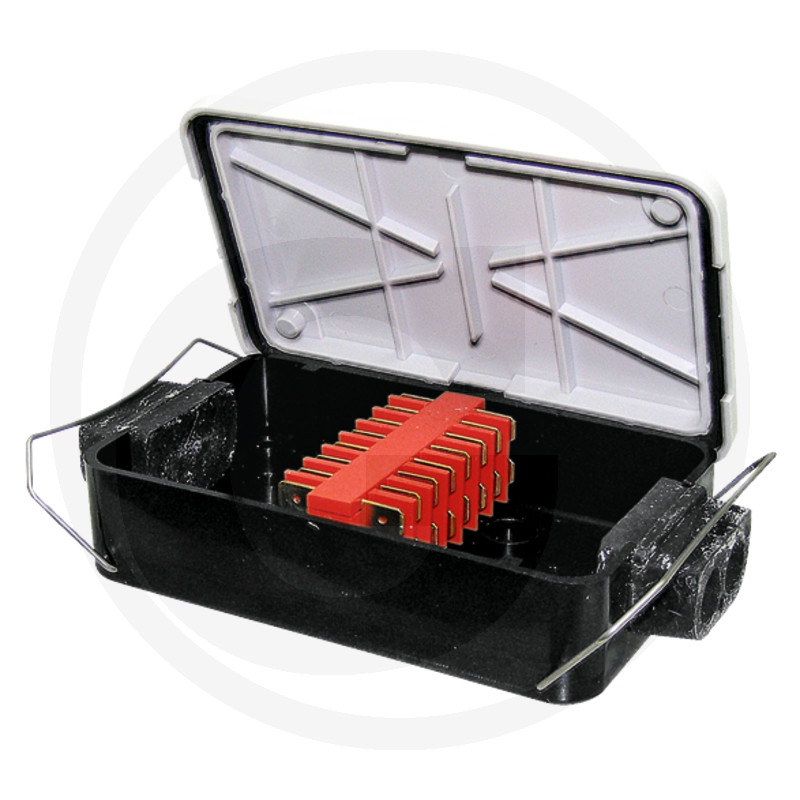

GRANIT Junction box

Further information

Version:

Number of connections: 16
Blade connection system: 8 x 4
inputs/outputs: 6
Inlet: Ø (mm) 2 x 10 + 1 x 3 Outlet: Ø (mm) 2 x 10 + 1 x 3
Bores 2 / 4 Ø (mm)
Housing with aluminium cover, dimensions: L 120 x H 36 x W 87 (mm)

Connection:

8 x 4

Hole Ø (mm):

4

Width (mm):

120

Height (mm):

36

Material:

Plastic

Plug width (mm):

6,3

Housing:

With plastic cover

Depth (mm):

87

Protection class:

IP 6K

Number of pins:

8

Additional information:

• Number of connections: 32
• Number of inlets/outlets: 6
• Inlet Ø 1 (mm): 10
• Inlet Ø 2 (mm): 10
• Inlet Ø 3 (mm): 3
• Outlet Ø 1 (mm): 10
• Outlet Ø 2 (mm): 10
• Outlet Ø 3 (mm): 3
• Number of holes: 2
• Spacing of the fixing holes (mm): 30

Mounting type:

Blade terminal connection

Manufacturer:

Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]

Weight:

224 g

EAN codes:

4026736023317

Catalogue:

Electrics (p. 1116)

To be found in category:

ElectricsConnection technologyInstallation materialsJunction boxes, plastic
