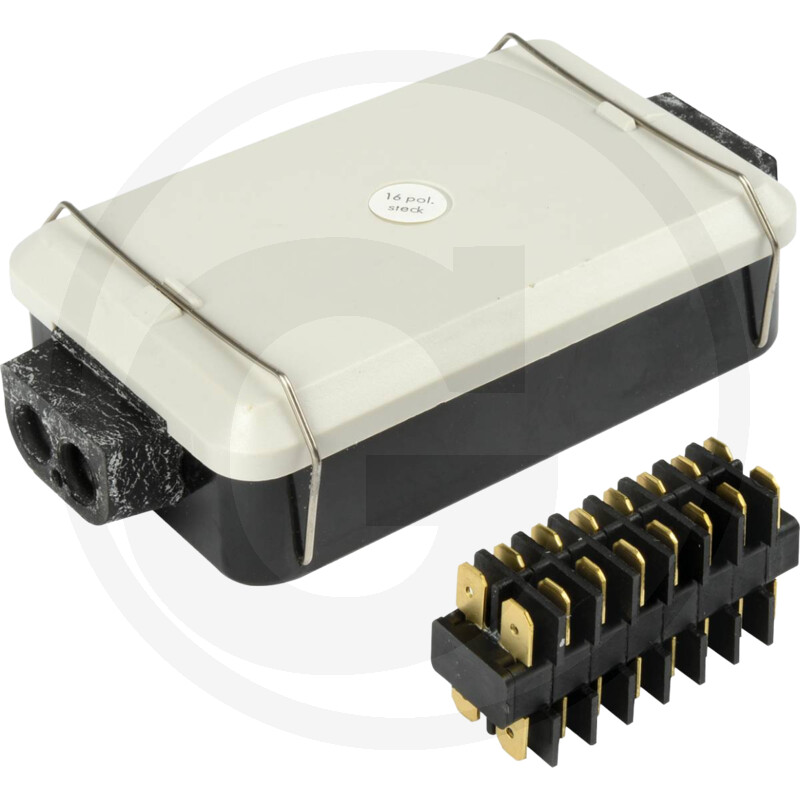

GRANIT Junction box

Further information

Version:

16 blade connections
Number of connections: 32
Mounting: Blade connection
Connection system: 16 x 2
inputs/outputs: 6
Inlet Ø (mm): 2 x 10 + 1 x 3, outlet Ø (mm): 2 x 10 + 1 x 3
Bore: 2, bore Ø (mm): 4
Housing type: Housing with plastic cover
Protection type: IP6K
Material: Plastic, length x height x width (mm): 120 x 36 x 87

Connection:

16 x 2

Hole Ø (mm):

4

Width (mm):

120

Height (mm):

36

Material:

Plastic

Plug width (mm):

6,3

Housing:

With plastic cover

Depth (mm):

87

Protection class:

IP 6K

Number of pins:

16

Additional information:

• Number of connections: 32
• Number of inlets/outlets: 6
• Inlet Ø 1 (mm): 10
• Inlet Ø 2 (mm): 10
• Inlet Ø 3 (mm): 3
• Outlet Ø 1 (mm): 10
• Outlet Ø 2 (mm): 10
• Outlet Ø 3 (mm): 3
• Number of holes: 2
• Spacing of the fixing holes (mm): 30

Mounting type:

Blade terminal connection

Manufacturer:

Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]

Weight:

157 g

EAN codes:

4026736023270

Catalogue:

Electrics (p. 1116)

To be found in category:

ElectricsConnection technologyInstallation materialsJunction boxes, plastic
