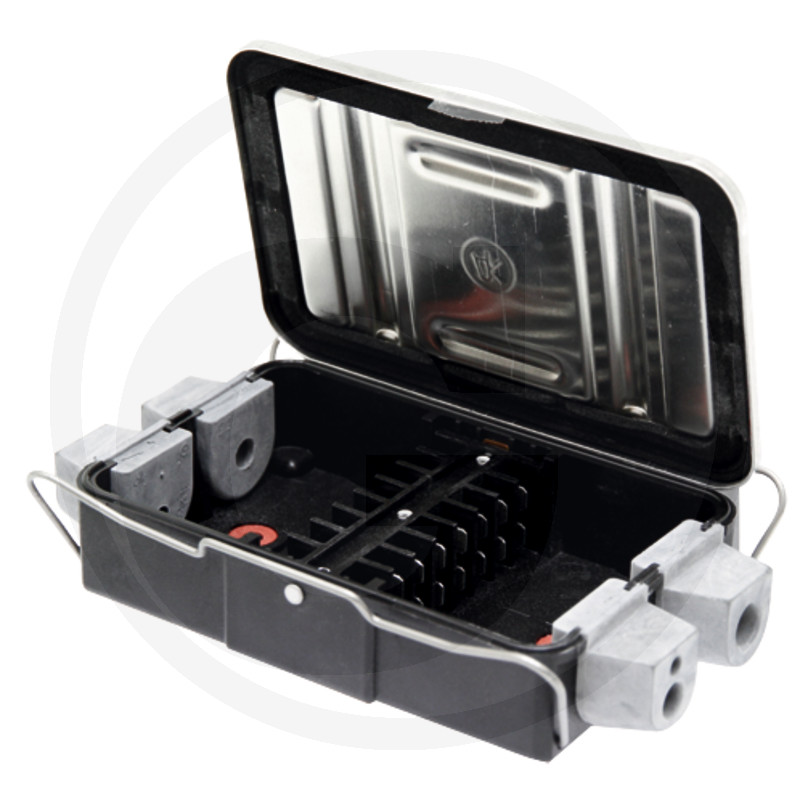

GRANIT Junction box

Further information

Version:

Number of connections:
32 blade terminals
Connection: 8 x 4, inputs/outputs: 6
Input: Ø (mm) 2 x 7 + 1 x 9.5, output: Ø (mm) 2 x 7 + 1 x 9.5
Holes 2 / 5.5 Ø (mm)
Housing with aluminium cover, dimensions (mm): L 150 x H 45 x W 93

Connection:

8 x 4

Hole Ø (mm):

5.5

Width (mm):

150

Height (mm):

45

Material:

PA (polyamide)

Plug width (mm):

6,3

Housing:

With aluminium cover

Depth (mm):

93

Protection class:

IP 54

Number of pins:

8

Additional information:

• Number of connections: 32
• Number of inputs/outputs: 6
• Input Ø 1 (mm): 5
• Input Ø 2 (mm): 7
• Input Ø 3 (mm): 9.5
• Output Ø 1 (mm): 5
• Output Ø 2 (mm): 7
• Output Ø 3 (mm): 9.5
• Number of holes: 2
• Distance between mounting holes (mm): 90

Mounting type:

Blade terminal

Manufacturer:

Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]

Weight:

236 g

EAN codes:

4026736021238

Catalogue:

Electrics (p. 1116)

To be found in category:

ElectricsConnection technologyInstallation materialsJunction boxes, plastic
