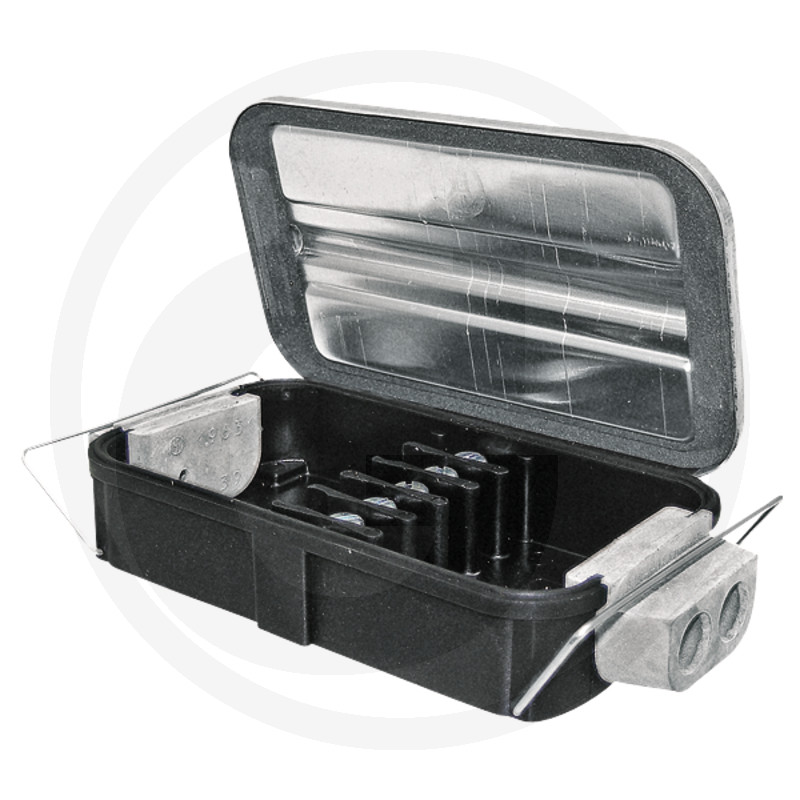

GRANIT Junction box

Further information

Version:

Number of connections: 6
Mounting type: screw connection
Connection technology: 6 x 1 (M4 bolts)
Inputs/outputs: 4
Holes: 2, hole spacing (mm): 30, hole Ø (mm): 4.8
Housing type: housing with aluminium cover
Protection class: IP 54
Material: polyamide

Connection:

6 x 1

Connection thread:

M4

Hole Ø (mm):

4.8

Width (mm):

120

Height (mm):

30

Material:

PA (polyamide)

Housing:

With aluminium cover

Depth (mm):

69

Protection class:

IP 54

Number of pins:

6

Additional information:

• Number of inlets/outlets: 4
• Number of holes: 2
• Inlet Ø 1 (mm): 9
• Inlet Ø 2 (mm): 9
• Outlet Ø 1 (mm): 9
• Outlet Ø 2 (mm): 9
• Distance between mounting holes (mm): 30

Mounting type:

Screw connection

Manufacturer:

Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]

Weight:

121 g

EAN codes:

4026736021177

Catalogue:

Electrics (p. 1116)
