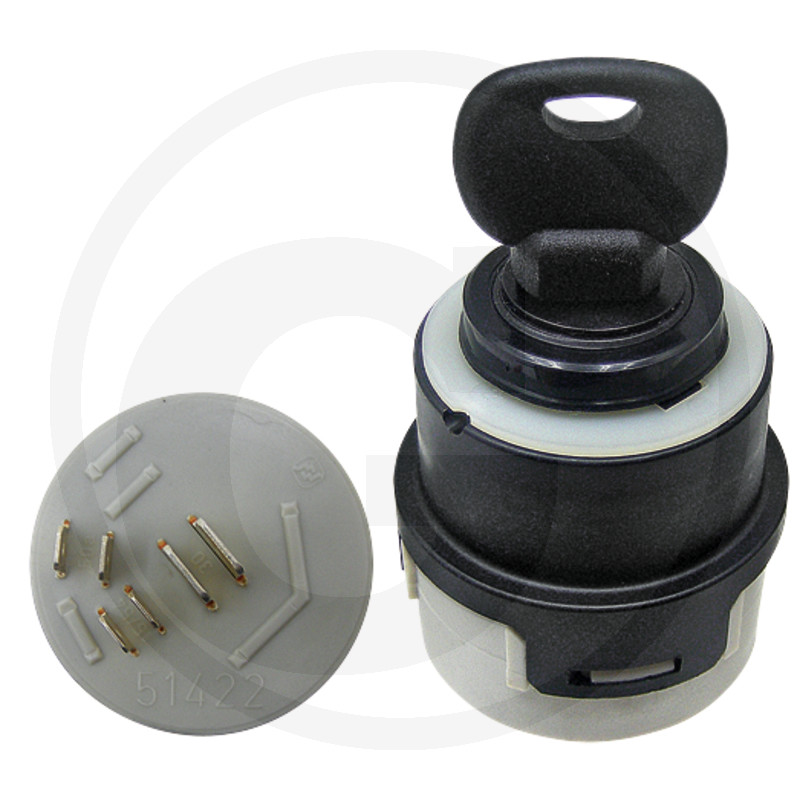

GRANIT Ignition switch
With 2 keys
Part no.: 50702069
Further information
- Types:
- T 7510, 7520, 7530, 7540, 7550
TVT 135, 145, 155, 170, 190, 195 - Version:
- Operating voltage: 12 V / 24 V
With 6 blade terminals (6.3 x 0.8 / 9.5 x 1.2 mm)
Locking cylinder with protection against water
2 keys (type A 14603)
Number of switching operations: approx. 50,000
Circuit diagram: 0 = Off / 1 = Consumer / 2 = Start
Start repeat interlock: yes
Preheating function: no
Ambient temperature: +85°C - -40°C
Installation Ø: 28 mm for M26x1.5 thread - Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 202 g
- Catalogue:
- Electrics (p. 1238)
- To be found in category:
- ElectricsSwitches/controlsApplication listsNew Holland
