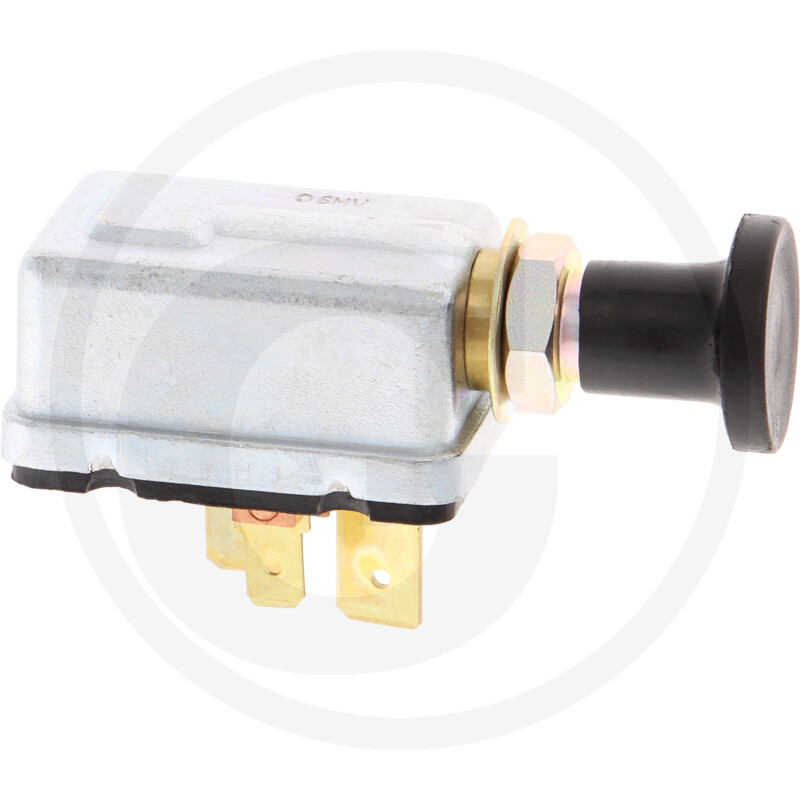

GRANIT Start switch
Pull switch, with knob
Part no.: 50702061
Further information
- Version:
- Galvanised housing
Power rating: 50 A / 12 V (terminal 19), 27 A / 24 V (terminal 19), 12 A / 12 V (terminal 50a), 9 A / 24 V (terminal 50a)
Fixing: with nut M10 x 1
Installation: Ø 10.5 mm for wall thickness up to 3 mm
Switch position: push button must be held in position 1 (preheat) and 2 (start), automatically returns to position 0 (off)
Connection: blade terminal - Menke no.:
- 248056
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 106 g
- Catalogue:
- Electrics (p. 1297)
- To be found in category:
- ElectricsSwitches/controlsIgnition/start switches
