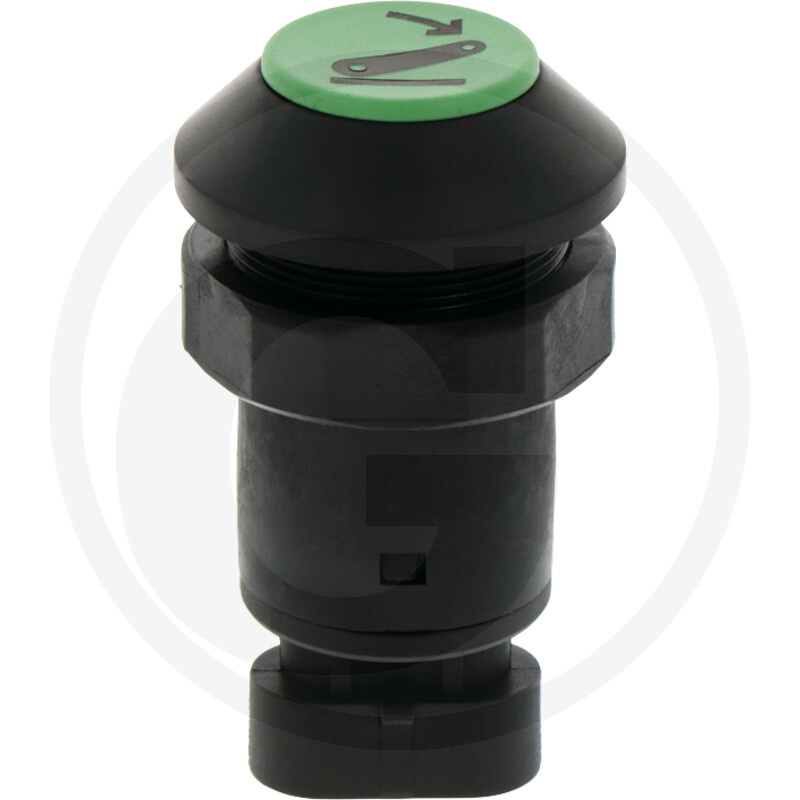

GRANIT Push button, DTW, lower cutting unit

Further information

Types:

Mach 200ST, 220ST, 210 VRT, 230 VRT, 250 VRT
Nitro (also Hi-Profile and VRT) 100, 110, 120, 130
Nitro R 90, 100, 110, 120
R 2.60, 2.70, 2.80, 2.90 2.100, 3.105, 4.100, 4.100 VRT, 4.110, 4.110 VRT
R 6.120.4, 6.130, 6.130S, 6.130.4, 6.135, 6.140, 6.140S, 6.140.4, 6.150, 6.150S, 6.150.4, 6.150.7, 6.155, 6.160, 6.160.4, 6.165S, 6.165.7, 6.175, 6.180, 6.180.7, 6.185, 6.190
R6 Hi Profile 6.110, 6.115, 6.120.4, 6.125, 6.130, 6.130.4, 6.135, 6.140, 6.140.4, 6.150, 6.150.4, 6.150.7, 6.155, 6.160, 6.160.4, 6.165.7, 6.175, 6.180, 6.180.7, 6.185, 6.190
R6 VRT 6.115, 6.120.4, 6.125, 6.130.4, 6.135, 6.140, 6.140.4, 6.150, 6.150.4, 6.150.7, 6.160.4, 6.165.7, 6.170, 6.190, 6.210, 6.230, 6.250
R 7.190, 7.220, 8.215, 8.230, 8.265, 8.270
RF/RS/RV 80, 90, 90.3, 100, 110
Spark 120, 120 VRT, 130, 130 VRT, 135G, 140, 140 VRT, 145G, 155G, 165G, 175G, 185G, 205G
Spark (also Hi-Profile-CShift) 120, 150, 105.4, 160, 160.4, 180, 190, 210
Spire 70, 80, 85, 90, 90 VRT, 90.4, 90.4 VRT, 100 VRT, 100.4, 100.4 VRT, 110.4 VRT
Spire F/S/V (also VRT) 80, 90, 90.4, 100, 105, 115
Strike 80, 90, 90.4, 95, 100, 105, 105.4, 110, 115, 115.4, 120, 125
Victory (also Plus) 230, 260

Version:

Colour: green RAL 6018
Symbol colour: black
Switching voltage: 48 V
Switching current: 0.5 A
Switching power: 10 W / VA
Contact type: make contact
Switching point: 3 + - 1 mm
Total button travel: 5 mm
Operating force: approx. 25 N
Temperature range: -20°C - +100°C
Protection classes: connection side and controls: IP 67 (IEC 529), operating side: IP 64 (IEC 529)
Thread M30x1
Fixing nut AF 36 (included)
AMP Superseal series 1.5, three-pin
Overall dimensions (Ø x height): 39.0 x 69.0 mm

Manufacturer:

Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]

Weight:

42 g

Catalogue:

Electrics (p. 1217)
