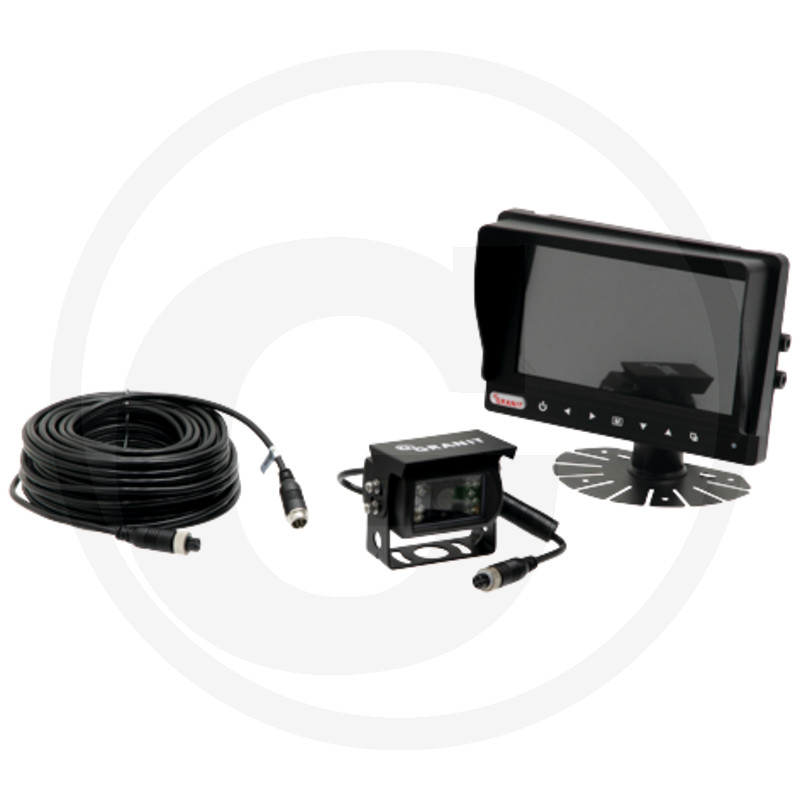

GRANIT Reversing video system
20 m cable, 7” colour monitor, 1 camera with IP69K including connection, image angle 130 degrees, 2 camera inputs (NTSC/PAL)
Part no.: 50700302
Further information
- Included in delivery:
- LCD colour display with 7" colour monitor, cable, camera
Protection class: IP69K - Technical data:
- Monitor with one camera
Makes reversing easy and safe. For daily use where there are unclear obstacles, and wherever the field of vision is limited in lorries, commercial vehicles and agricultural machinery.
LCD colour system
Cable set for monitor
AU TFT LCD monitor
12 V and 24 V operating voltage
OSD menu
Bracket
Camera
1/3” CMOS camera
Operating temperature -20 ~ +70°C
TV output (NTSC/PAL)
Image angle 130°
2 camera inputs (NTSC/PAL)
No split screen function - Dimensions W x H x D (mm):
- 199 x 136 x 30
- Operating voltage (V):
- 12 / 24
- Eligible:
- Environmental protection and safety (formerly de minimis)
- Menke no.:
- 81578
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 2,59 kg
- EAN codes:
- 4059139049004
- Catalogue:
- Electrics (p. 1005)
- To be found in category:
- ElectricsVideo systemsGRANITWired system: 7" Monitor with one camera
GRANIT wired video systems make monitoring work areas and routes easy and safe. For daily use where there are unclear obstacles, and wherever the field of vision is limited in lorries, commercial vehicles and agricultural machinery.
