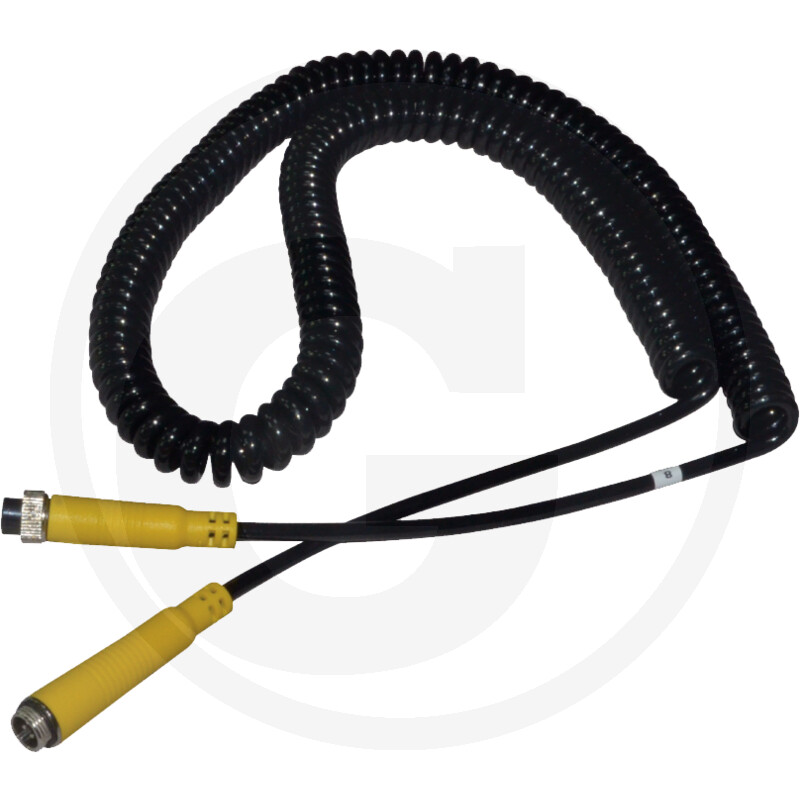

GRANIT Spiral cable
Part no.: 5070011196
Further information
- Length (m):
- 2.25 (max. 5)
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 244 g
- To be found in category:
- ElectricsVideo systemsGRANIT9" monitor for wired cameras
Connect 1, 2, 3 or 4 cameras as required. The image can be split according to the number of cameras used, or can be displayed in full screen mode with just one camera. Each of the four cameras can be controlled and activated individually using an impulse line (e.g. via brake light, reversing light, etc.)
Two cable sets for adapting the two plugs to up to four cameras, including impulse lines, are included. These are also used to supply power. A cigarette lighter plug is also supplied to allow flexible use of the monitor. Order the required number of suitable cameras (50700305) and connecting cables (50700304) at the same time.
Technical data:
• Colour monitor
• TFT LCD
• LED backlighting
• Interface: digital TTL
• 12 V and 24 V operating voltage
• Operating temperature: -20 to +60°C
• Including bracket
• Screen: 198 mm x 111.7 mm
• External dimensions: 235 mm x 155 mm x 70 mm
• Connections: 2x 9-pin S-Video connector
• Max. 7 watts
Two cable sets for adapting the two plugs to up to four cameras, including impulse lines, are included. These are also used to supply power. A cigarette lighter plug is also supplied to allow flexible use of the monitor. Order the required number of suitable cameras (50700305) and connecting cables (50700304) at the same time.
Technical data:
• Colour monitor
• TFT LCD
• LED backlighting
• Interface: digital TTL
• 12 V and 24 V operating voltage
• Operating temperature: -20 to +60°C
• Including bracket
• Screen: 198 mm x 111.7 mm
• External dimensions: 235 mm x 155 mm x 70 mm
• Connections: 2x 9-pin S-Video connector
• Max. 7 watts
