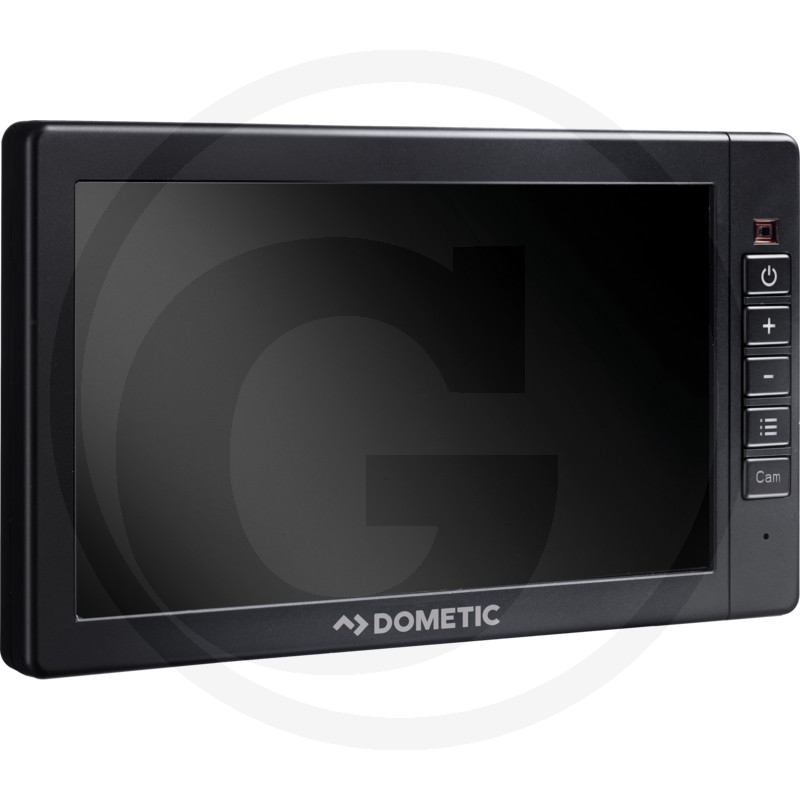

Dometic Monitor M75LX
PerfectView
Part no.: 5070010805
Further information
- Included in delivery:
- • Monitor
• Stand
• Connection cable
• Installation mat
• Manual - Colour:
- Black
- Width (mm):
- 190
- Height (mm):
- 110
- Technical data:
- • Brightness adjustment: automatic via LDR
• Image brightness: 800.00 cd/m²
• Resolution: 614,000 px
• Video standard: PAL/NTSC Auto
• Vibration resistance: 6.00 g
• Mirror image function: can be set - Dimensions W x H x D (mm):
- 190 x 110 x 26
- Depth (mm):
- 26
- Protection class:
- IP40
- Type:
- Dometic PerfectView M 75LX AHD
- Version:
- Robust 7" LCD monitor with AHD technology
- Test mark:
- ECE R10
- Additional information:
- • Resistant
• LCD display and Analogue High Definition technology (AHD)
• With sun visor
• With super bright, energy-saving LED backlight that ensures excellent image quality in all lighting conditions
• The danger zone can be limited using distance markers
• Lockable connectors that are resistant to dust and water
• Easily adjustable ball joint for precise and perfect positioning
• With illuminated buttons and day/night switchover
• Automatic detection of the trailer camera
• Optional mirror image function
• One camera input is for signal detection, which allows a side camera to be activated by the indicator - Operating temperature (°C):
- -20°C - 70°C
- Input voltage DC (V):
- 12/24
- Camera inputs:
- 4
- Weight:
- 980 g
- EAN codes:
- 4015704272635
- Catalogue:
- Electrics (p. 1010)
- To be found in category:
- ElectricsVideo systemsDOMETICPerfectView RVS 755 X
COMPLETE SYSTEMS FOR HIGHER DRIVING SAFETY
The PerfectView range includes a broad selection of complete reversing systems with perfectly coordinated components. Each system consists of a flat, elegant 5 or 7 inch LCD monitor and a high-quality, reliable PerfectView camera. Connection cable and mounting accessories included. Additional cameras can be added immediately or later.
The PerfectView range includes a broad selection of complete reversing systems with perfectly coordinated components. Each system consists of a flat, elegant 5 or 7 inch LCD monitor and a high-quality, reliable PerfectView camera. Connection cable and mounting accessories included. Additional cameras can be added immediately or later.
WAECO PerfectView RVS 7” monitor
• Digital LCD panel with LED backlighting
• Optimum image quality even at low temperatures
• OSD distance markers for comfortable manoeuvring
• Normal or mirror image function
• Four camera inputs, 1 of which with signal detection
• Image settings can be saved
• Connection of e.g. side cameras via the indicator
• Automatic detection of a trailer camera
• Clip-on sun visor
• Elegant monitor base with hidden cable routing
High-end reversing video system with high-quality 7" LCD monitor and colour camera
• For 12 and 24 V operating voltage
• Automatic or manual switch-on
• Automatic day/night switchover
• Normal or mirror image function
• Adjustable distance markers
• 385,000 pixels
• 4 camera inputs, 3 of which can be controlled separately
• Image settings can be saved for each camera
• Speaker
• Automatic trailer detection
• LED backlighting
Dimensions (WxHxD): 190 x 110 x 26 mm
Screen size: 7"/178 mm (visible image)
Operating voltage: 12 to 30 V DC
Power consumption: 8 watts
Resolution: 385,000 pixels
Video standard: PAL/NTSC auto
Operating temperature: -20 to +70°C
Vibration resistance: 6 g
Weight: 400 g
Image brightness: 400 cd/m²
Dimmer: automatic via LDR
Camera inputs: 3 + 1 with signal detection
Mirror function: can be switched via monitor
Test mark: E-certificate, ISO 16750, ISO 14982
Technical data (camera):
• Colour camera (PAL) with LED
• Normal or mirror function
• Anodised and powder-coated housing
• Adjustable sun visor
• Microphone
• Temperature controlled heater
• Electronic brightness adjustment
• LDR-controlled IR LEDs
• Wide-angle lens with a large image angle (120° diagonal)
Dimensions (WxHxD): 94 x 62 x 48 mm (including mount)
Operating voltage: 11 to 16 V DC
Power consumption: 1.8 watts (with heater)
Image sensor: 1/4" Sony CCD
Resolution: 270,000 pixels
Image angle: 120° diagonal, h: approx. 90°, v: approx. 70°
Light sensitivity: <1 lux or 0 lux with LED
Video standard: PAL
Operating temperature: -20 to +65°C
Colour: silver
Vibration resistance: 6 g
Weight: 200 g
Brightness adjustment: electronic
Mirror function: can be switched
Protection class: IP69K
Mark of conformity: E-certificate
• Digital LCD panel with LED backlighting
• Optimum image quality even at low temperatures
• OSD distance markers for comfortable manoeuvring
• Normal or mirror image function
• Four camera inputs, 1 of which with signal detection
• Image settings can be saved
• Connection of e.g. side cameras via the indicator
• Automatic detection of a trailer camera
• Clip-on sun visor
• Elegant monitor base with hidden cable routing
High-end reversing video system with high-quality 7" LCD monitor and colour camera
• For 12 and 24 V operating voltage
• Automatic or manual switch-on
• Automatic day/night switchover
• Normal or mirror image function
• Adjustable distance markers
• 385,000 pixels
• 4 camera inputs, 3 of which can be controlled separately
• Image settings can be saved for each camera
• Speaker
• Automatic trailer detection
• LED backlighting
Dimensions (WxHxD): 190 x 110 x 26 mm
Screen size: 7"/178 mm (visible image)
Operating voltage: 12 to 30 V DC
Power consumption: 8 watts
Resolution: 385,000 pixels
Video standard: PAL/NTSC auto
Operating temperature: -20 to +70°C
Vibration resistance: 6 g
Weight: 400 g
Image brightness: 400 cd/m²
Dimmer: automatic via LDR
Camera inputs: 3 + 1 with signal detection
Mirror function: can be switched via monitor
Test mark: E-certificate, ISO 16750, ISO 14982
Technical data (camera):
• Colour camera (PAL) with LED
• Normal or mirror function
• Anodised and powder-coated housing
• Adjustable sun visor
• Microphone
• Temperature controlled heater
• Electronic brightness adjustment
• LDR-controlled IR LEDs
• Wide-angle lens with a large image angle (120° diagonal)
Dimensions (WxHxD): 94 x 62 x 48 mm (including mount)
Operating voltage: 11 to 16 V DC
Power consumption: 1.8 watts (with heater)
Image sensor: 1/4" Sony CCD
Resolution: 270,000 pixels
Image angle: 120° diagonal, h: approx. 90°, v: approx. 70°
Light sensitivity: <1 lux or 0 lux with LED
Video standard: PAL
Operating temperature: -20 to +65°C
Colour: silver
Vibration resistance: 6 g
Weight: 200 g
Brightness adjustment: electronic
Mirror function: can be switched
Protection class: IP69K
Mark of conformity: E-certificate
