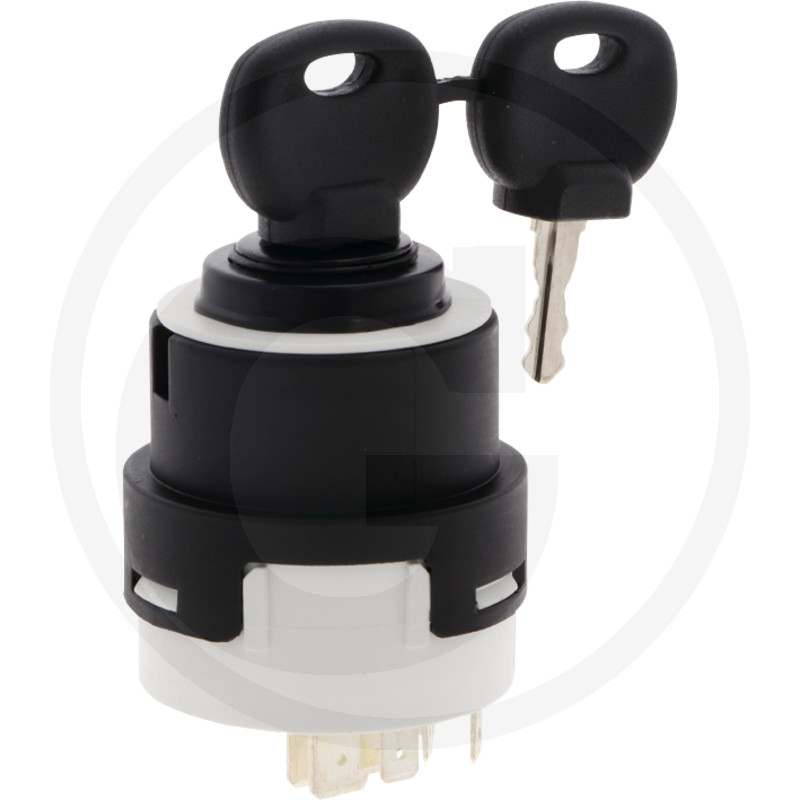

GRANIT Start switch

Further information

Version:

Operating voltage: 12 V/24 V
Connection: 7 blade terminals (6.3 x 0.8 mm & 9.5 x 1.2 mm)
Locking cylinder / key with water protection
2 keys (type B 14607)
Max. voltage drop: 250 mV
Number of switching operations: approx. 50,000
Circuit diagram: 0, I, II
Start repeat interlock: yes
Preheating function: no
Ambient temperature: +85°C - -40°C

Switching stages:

0-1-2

Plug:

7

Voltage range (V):

12-24V

Locking number:

14607

Manufacturer:

Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]

Weight:

204 g

Catalogue:

Electrics (p. 1295)

To be found in category:

ElectricsSwitches/controlsIgnition/start switches
