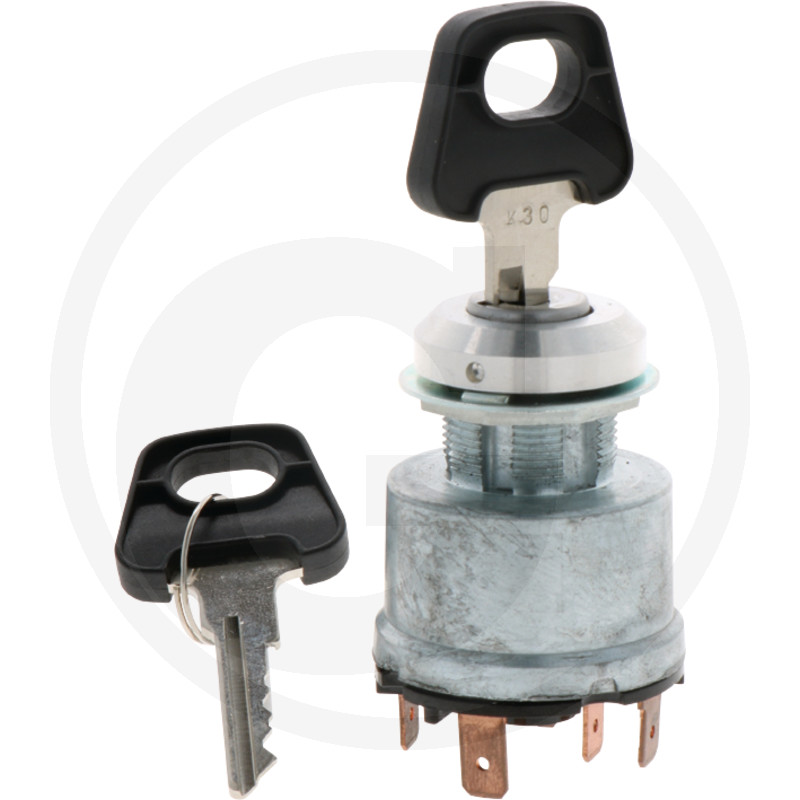

GRANIT Start switch

Further information

Version:

Operating voltage: 12 V/24 V
Connection: 6 blade terminals (6.3 x 0.8 mm)
Locking cylinder with protection against water
2 keys (type K30)
Max. voltage drop: 250 mV
Number of switching operations: approx. 50,000
Circuit diagram: R, 0, I, II
Start repeat interlock: no
Preheating function: no
Ambient temperature: +85°C - -40°C

Switching stages:

R-0-1-2

Plug:

6

Voltage range (V):

12 - 24V

Locking number:

K 30

Manufacturer:

Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]

Weight:

122 g

Catalogue:

Electrics (p. 1295)

To be found in category:

ElectricsSwitches/controlsIgnition/start switches
