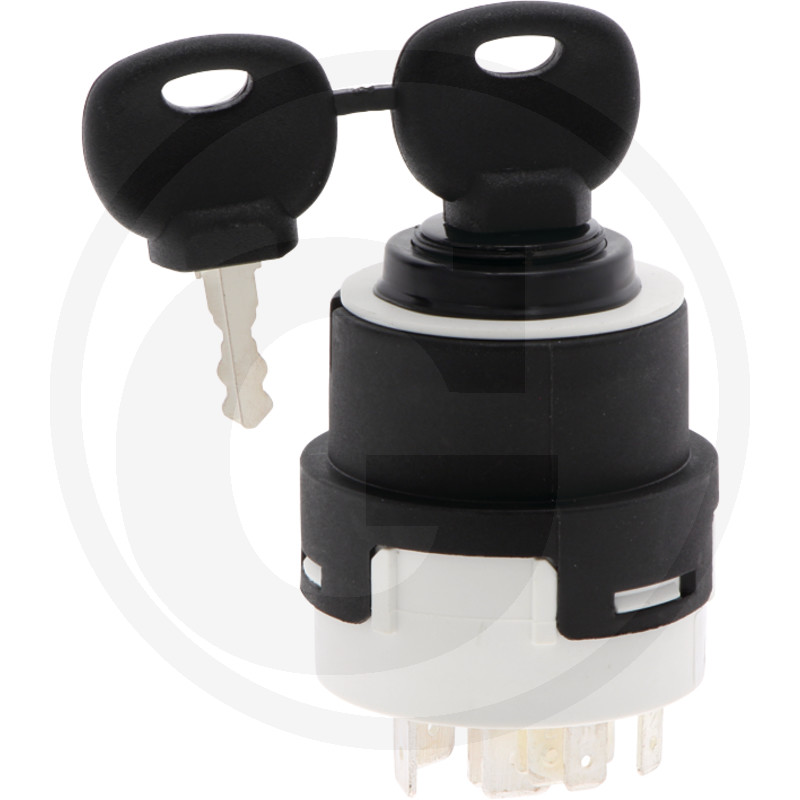

GRANIT Start switch

Further information

Version:

Operating voltage: 12 V/24 V
Connection: 9 blade terminals (6.3 x 0.8 / 9.5 x 1.2 mm)
Locking cylinder / key with water protection
2 keys (type B 14607)
Number of switching operations: approx. 50,000
Circuit diagram: park (P), 0, ignition (I), preheat (II), start (III)
Start repeat interlock: yes
Preheating function: yes
Ambient temperature: +85°C - -40°C
Mounting Ø: 28 mm for M26 x 1.5 thread

Mounting Ø (mm):

28

Switching stages:

P-0-1-2-3

Plug:

9

Voltage range (V):

12-24V

Locking number:

14607

Manufacturer:

Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]

Catalogue:

Electrics (p. 1296)

To be found in category:

ElectricsSwitches/controlsIgnition/start switches
