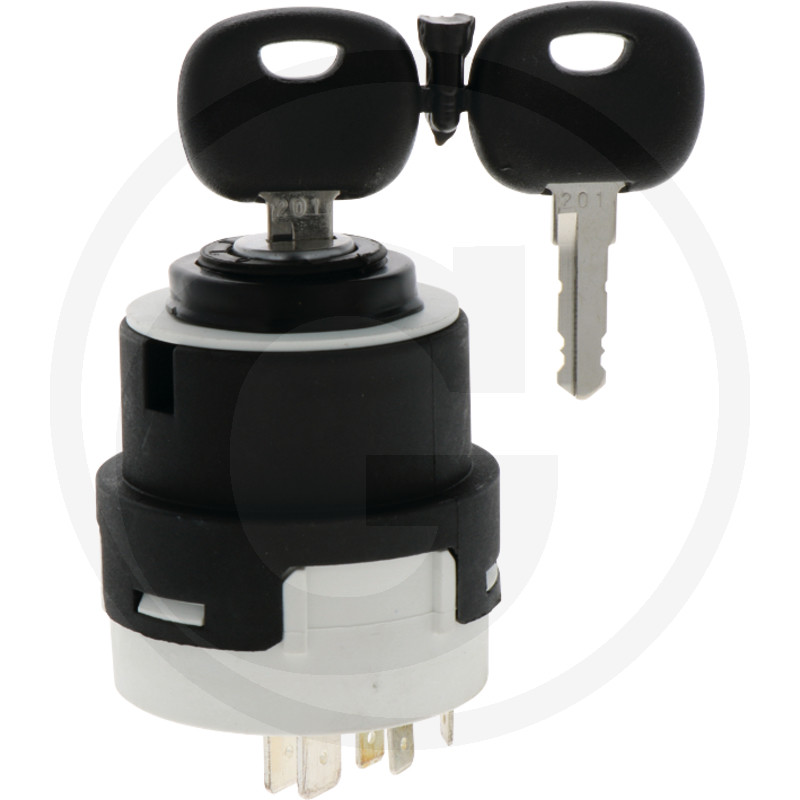

GRANIT Start switch

Further information

Version:

Operating voltage: 12 V/24 V
Connection: 6 blade terminals (6.3 x 0.8 / 9.5 x 1.2 mm)
Locking cylinder with water protection
2 keys (code 201)
Number of switching operations: approx. 50,000
Circuit diagram: park (P), 0, ignition (I), start (II)
Start repeat interlock: no
Preheating function: no
Ambient temperature: +85°C - -40°C
Mounting Ø: 28 mm for thread M26 x 1.5

Mounting Ø (mm):

28

Switching stages:

P-0-1-2

Plug:

6 Stück (6,3 x 0,8 / 9,5 x 1,2 mm)

Voltage range (V):

12 - 24V

Locking number:

201

Manufacturer:

Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]

Weight:

176 g

Catalogue:

Electrics (p. 1294)

To be found in category:

ElectricsSwitches/controlsIgnition/start switches
