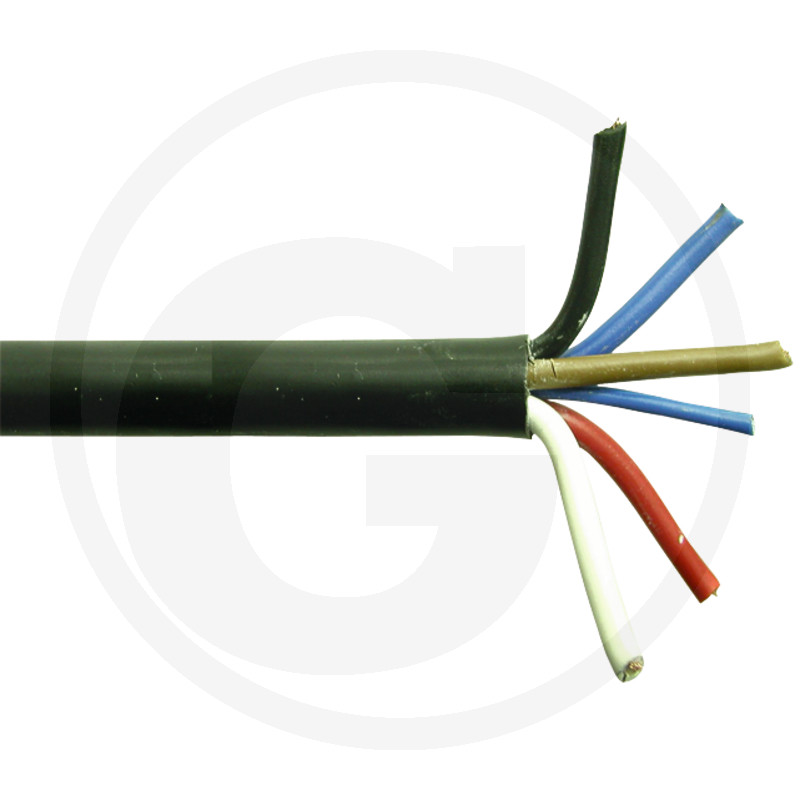

GRANIT ISOBUS cable
PVC, 100 m
Part no.: 5060010415
Further information
- Outer Ø (mm):
- 15,6
- DIN/ISO:
- ISO 11783-2
- Colour:
- Black
- Material:
- PU & PVC black (exterior), fleece (wrapping)
- Cross section (mm²):
- 2 x 6 + 2 x 2.5 + 1 x 4 x 0.5
- Length (m):
- 100
- Roll length (m):
- 100
- No. of cores x nominal cross section (mm²):
- 2x6 + 2x2,5 + 1x4x0,5
- Number of pins:
- 9
- Additional information:
- Finely stranded copper conductor made of bare copper wires in accordance with stranded conductor class 5 pursuant to IEC 60228/VDE 0295
4x 0.5 mm² (red, yellow, black, green)
2x 2.5 mm² (red, black)
2x 6 mm² (red, black)
Outer sheath: PU and PVC, black (RAL 9005)
Characteristic impedance 75 ohm
Test voltage:
0.5 mm - 2.5 mm² wire/wire = 1.5 kV
6 - 10 mm² wire/wire = 2.5 kV - Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 39,70 kg
- Catalogue:
- Electrics (p. 1630)
- To be found in category:
- ElectricsPrecision farmingISOBUSCablesISOBUS cables
