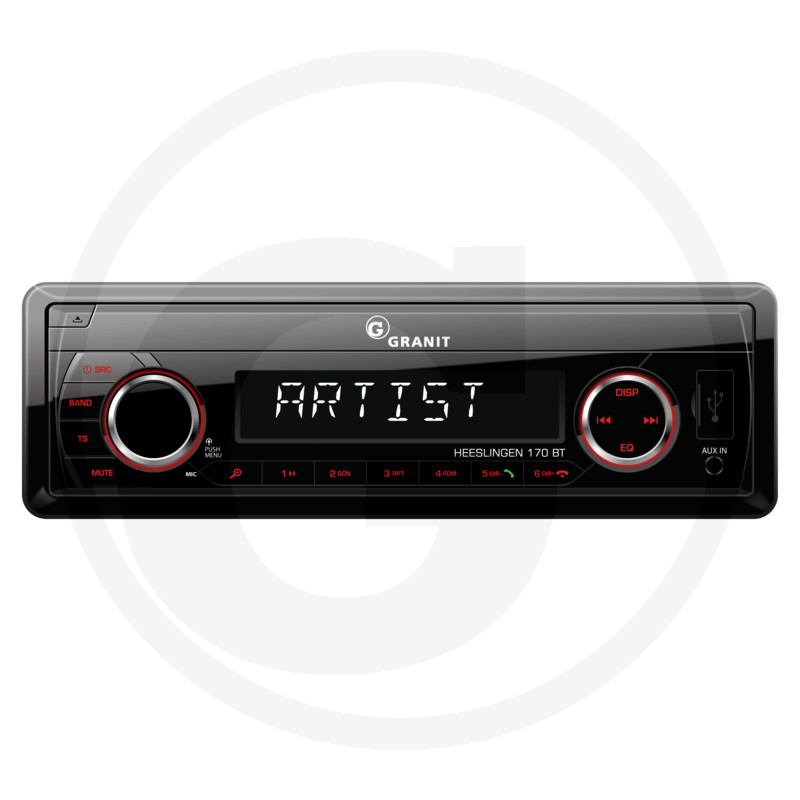

GRANIT Heeslingen 170 BT radio

Highlights
• Automotive tuner
• FM (RDS), AM (MW, LW)
• Playback formats: MP3, WMA
• Playback from USB, SDHC, SD
• Media: USB, SDHC, SD
• Built-in Bluetooth (HFP, A2DP)
• Built-in microphone
• Front USB (standard A-type)
• SDHC card reader (behind release panel)
• Front aux-in
• 4x40 watts max. + 2-channel preamp out
• 4-band, semi-parametric equaliser
• Sound presets (flat, rock, pop, classical)
• X-Bass
• Permanent preset memory
• Release panel

Analogue radio
• Tuner type: RDS automotive tuner
• Global tuner (switchable): EU, USA, South America
• Frequency bands: FM 1, 2, 3, AM 1, 2
• Radio Data System (RDS): Alternative Frequency (AF)
Enhanced Other Networks (EON)
Regional Programme (REG)
Programme Service Name (PS)
Traffic Announcement (TA)
Traffic Programme (TP)
• Travel store: yes (FM3)
• Band scan/preset scan: yes/yes
• Permanent preset memory: yes
• Station memory: 30
Sensitivity: local (on/off)
• Interference suppression: yes
• Frequency response (Hz) -3 dB: 40 - 12,000

Bluetooth
• Supported version: Bluetooth 2.0 with DER
• Supported profiles: HFP, A2DP
• Audio streaming: yes
• Pairing (number of devices): 1
• Hands-free calls: via microphone + radio speaker
• Hands-free volume: yes
• Microphone: built-in
• Main functions: accept/end calls

Media
• USB: USB 2.0
• Memory cards: SDHC (up to 32 GB), SD
• USB/SD formatting: FAT 32, FAT 16

Media player
• Playback formats: MP3, WMA
• Title display: ID3 tag, file, folder

Equaliser
• Bass (at 100 Hz): +/-10 dB
• Treble (at 10 kHz): +/-10 dB
• Balance/fader: yes/yes
• X-Bass: yes (on/off)
• Sound presets: flat, rock, pop, classical

Amplifier
• Number of channels: 4
• Max. output power: 4 x 40 watts
• Sine wave power at 14.4 V: 4 x 18 watts

Display
• Type/lines: LCD/1
• Display: negative
• Viewing angle: 12 o'clock
• Time display: yes

Inputs
• Aerial (number): 1
• USB (number/type): 1 (front/standard A-type)
• Memory cards: yes (behind front panel)
• Aux-in (number/type): 1 (front/3.5 mm jack)

Outputs
• Speaker (number): 4
• Preamplifier (number): 2 channels (RCA)
• Preamplifier (voltage): 4 V

General
• Operating voltage: DC 12 V
• Power consumption: 10 amps (max.)
• Height x width x depth (mm): 50 x 178 x 97
• Software update: via USB
• Confirmation beep: yes (on/off)
• Front panel: release panel
• Panel colour: black
• Encoder button illumination: red/red
• Demo mode: yes
• Panel case: yes (included)
