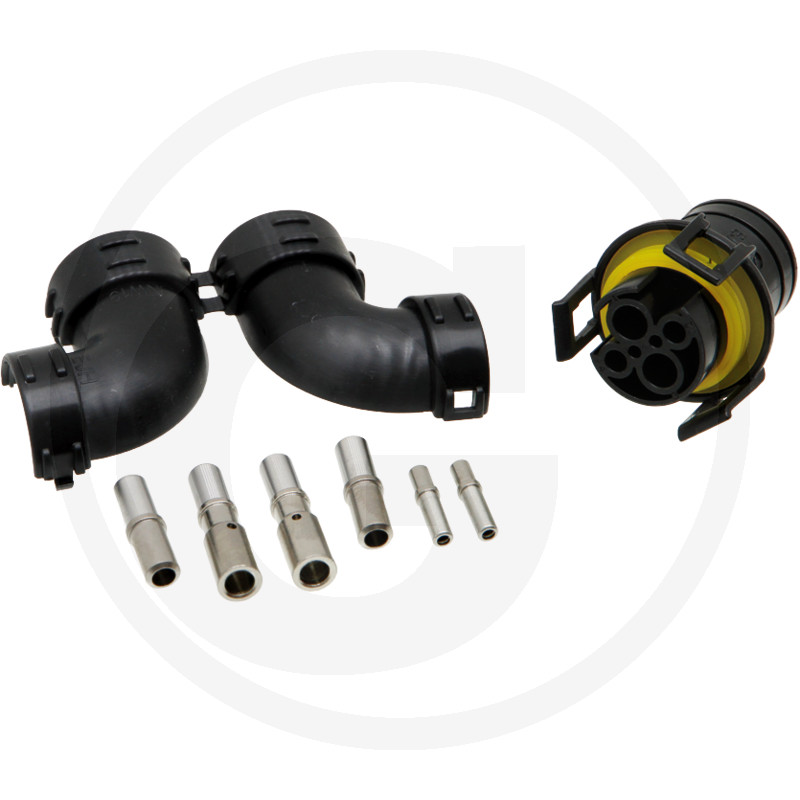

ERICH JAEGER Plug set

Further information

Version:

ECU/pass-through, tractor side

Additional information:

ISO 11783-2,
Contact sleeves for different connection cross sections (2 x 16 mm² + 2 x 10 mm² + 2 x 2.5 mm²),
corrugated pipe connection cap for NW19 (90° outlet)

Number of pins:

4

Length (mm):

120

Width (mm):

180

Height (mm):

42

Form:

Angled

Material:

Polyamide 6.6

Nominal width (mm):

19

Cross section (mm²):

2.5 / 10 / 16

Supplementary set:

With contacts

Weight:

58 g

EAN codes:

4026736407599

Catalogue:

Electrics (p. 1055)

To be found in category:

ElectricsConnection technologyISOBUS (9-pin/12 V)Plugs and socketsBreakaway Connector for implements
