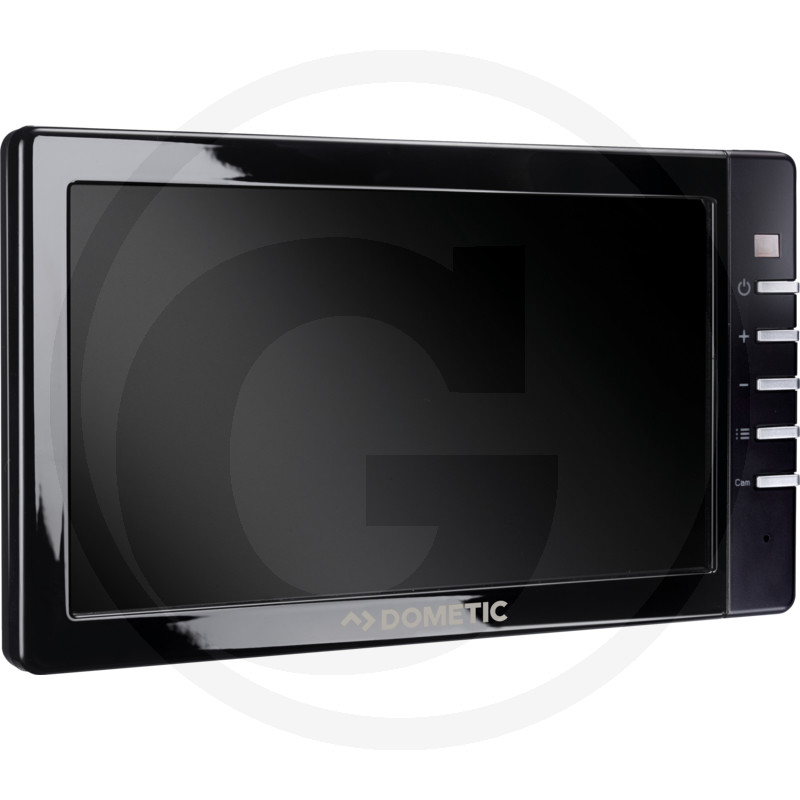

Dometic Monitor M75L
Dimensions including holder
Part no.: 5060010013
Further information
- Included in delivery:
- 7" colour LCD monitor including Easylink monitor mount, monitor cable set, mounting accessories for all components
- Dimensions L x W x H (mm):
- 190 x 110 x 26
- Version:
- LCD monitor, M75L, 7”/178 mm (16:9), operating voltage 11 - 30 V/DC
- Weight:
- 1,34 kg
- EAN codes:
- 4015704250664
- To be found in category:
- ElectricsVideo systemsDOMETICPerfectView RVS 750 N
COMPLETE SYSTEMS FOR HIGHER DRIVING SAFETY
The PerfectView range includes a broad selection of complete reversing systems with perfectly coordinated components. Each system consists of a flat, elegant 5 or 7 inch LCD monitor and a high-quality, reliable PerfectView camera. Connection cable and mounting accessories included. Additional cameras can be added immediately or later.
The PerfectView range includes a broad selection of complete reversing systems with perfectly coordinated components. Each system consists of a flat, elegant 5 or 7 inch LCD monitor and a high-quality, reliable PerfectView camera. Connection cable and mounting accessories included. Additional cameras can be added immediately or later.
WAECO PerfectView RVS 5” and 7” monitors
• Digital LCD panel with LED backlighting
• Optimum image quality even at low temperatures
• Normal or mirror image function
• Three camera inputs, 1 of which with signal detection
• Image settings can be saved for three camera inputs
• Connection of e.g. side cameras via the indicator
• Automatic detection of a trailer camera
• Elegant monitor base with hidden cable routing
Reversing video system with 7" LCD monitor and colour camera
• For 12 and 24 V operating voltage
• Automatic or manual switch-on
• Automatic day/night switchover
• Normal or mirror image function
• 384,000 pixels
• 3 camera inputs, 2 of which can be controlled separately
• Image settings can be saved for each camera
• Speaker
• Automatic trailer detection
• LED backlighting
Dimensions (WxHxD): 140 x 110 x 26 mm
Screen size: 7"/178 mm (visible image)
Operating voltage: 11 to 30 V DC
Power consumption: 8 watts
Resolution: 384,000 pixels
Video standard: PAL/NTSC auto
Operating temperature: -20°C to +70°C
Vibration resistance: 6 g
Weight: 400 g
Image brightness: 400 cd/m²
Dimmer: automatic via LDR
Camera inputs: 2 + 1 with signal detection
Mirror function: can be switched via monitor
Test mark: E-certificate, ISO 16750, ISO 14982
Technical data (camera):
• Colour camera (PAL) with LED
• Normal or mirror function • Anodised and powder-coated housing
• Adjustable sun visor
• Microphone
• Temperature controlled heater
• Electronic brightness adjustment
• LDR-controlled IR LEDs
• Wide-angle lens with a large image angle (120° diagonal)
Dimensions (WxHxD): 94 x 62 x 48 mm (including mount)
Operating voltage: 11 to 16 V DC
Power consumption: 1.8 watts (with heater)
Image sensor: 1/4" Sony CCD
Resolution: 270,000 pixels
Image angle: 120° diagonal, h: approx. 90°, v: approx. 70°
Light sensitivity: <1 lux or 0 lux with LED
Video standard: PAL
Operating temperature: -20°C to +65°C
Colour: silver
Vibration resistance: 6 g
Weight: 200 g
Brightness adjustment: electronic
Mirror function: can be switched
Protection class: IP 69K
Test mark: E-certificate
• Digital LCD panel with LED backlighting
• Optimum image quality even at low temperatures
• Normal or mirror image function
• Three camera inputs, 1 of which with signal detection
• Image settings can be saved for three camera inputs
• Connection of e.g. side cameras via the indicator
• Automatic detection of a trailer camera
• Elegant monitor base with hidden cable routing
Reversing video system with 7" LCD monitor and colour camera
• For 12 and 24 V operating voltage
• Automatic or manual switch-on
• Automatic day/night switchover
• Normal or mirror image function
• 384,000 pixels
• 3 camera inputs, 2 of which can be controlled separately
• Image settings can be saved for each camera
• Speaker
• Automatic trailer detection
• LED backlighting
Dimensions (WxHxD): 140 x 110 x 26 mm
Screen size: 7"/178 mm (visible image)
Operating voltage: 11 to 30 V DC
Power consumption: 8 watts
Resolution: 384,000 pixels
Video standard: PAL/NTSC auto
Operating temperature: -20°C to +70°C
Vibration resistance: 6 g
Weight: 400 g
Image brightness: 400 cd/m²
Dimmer: automatic via LDR
Camera inputs: 2 + 1 with signal detection
Mirror function: can be switched via monitor
Test mark: E-certificate, ISO 16750, ISO 14982
Technical data (camera):
• Colour camera (PAL) with LED
• Normal or mirror function • Anodised and powder-coated housing
• Adjustable sun visor
• Microphone
• Temperature controlled heater
• Electronic brightness adjustment
• LDR-controlled IR LEDs
• Wide-angle lens with a large image angle (120° diagonal)
Dimensions (WxHxD): 94 x 62 x 48 mm (including mount)
Operating voltage: 11 to 16 V DC
Power consumption: 1.8 watts (with heater)
Image sensor: 1/4" Sony CCD
Resolution: 270,000 pixels
Image angle: 120° diagonal, h: approx. 90°, v: approx. 70°
Light sensitivity: <1 lux or 0 lux with LED
Video standard: PAL
Operating temperature: -20°C to +65°C
Colour: silver
Vibration resistance: 6 g
Weight: 200 g
Brightness adjustment: electronic
Mirror function: can be switched
Protection class: IP 69K
Test mark: E-certificate
