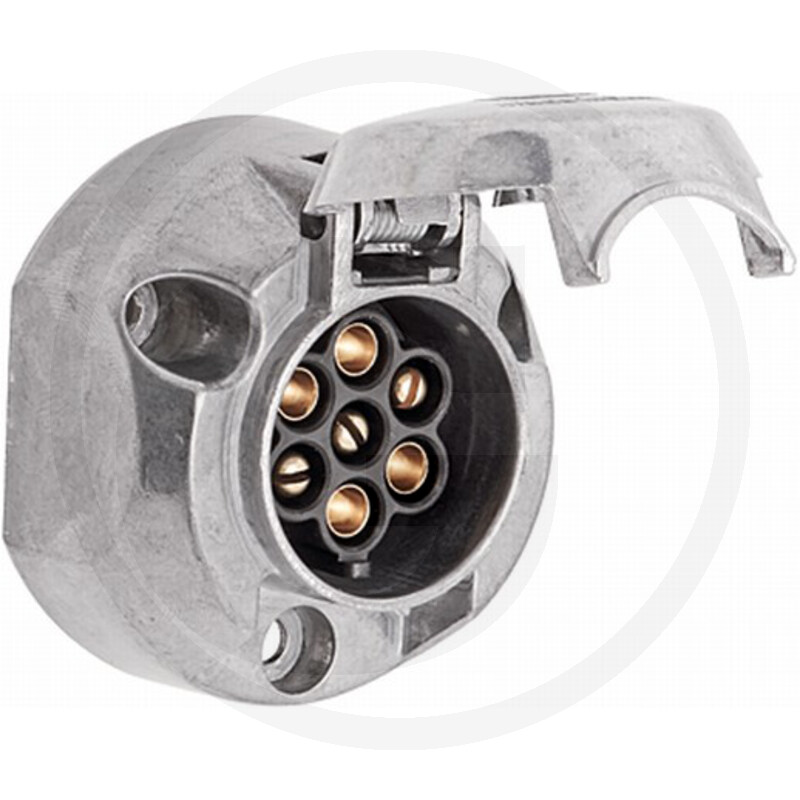

HELLA Socket
7-pin
Part no.: 4558JB 001941001
Further information
- Version:
- Metal version, ISO 1724 with screw connection, removable contact insert (centre contact 7/58L as pin) Suitable plug 4558JA 001918002, etc. 011
- Power rating max. 12 V:
- 16
- Material:
- Tin bronze
- Housing:
- Metal housing
- Nominal voltage (V):
- 12
- Number of pins:
- 7-pin
- Additional information:
- • Power rating max.: 16 A at 12 V (cable cross section 1.5 mm²) • Power rating max.: 25 A at 12 V (cable cross section 2.5 mm²) • With screw connection
- DIN/ISO:
- 1724
- Weight:
- 140 g
- EAN codes:
- 4082300102802
- Catalogue:
- Electrics (p. 1069)
- To be found in category:
- ElectricsConnection technologyPlugs/sockets, 7-pinSockets
