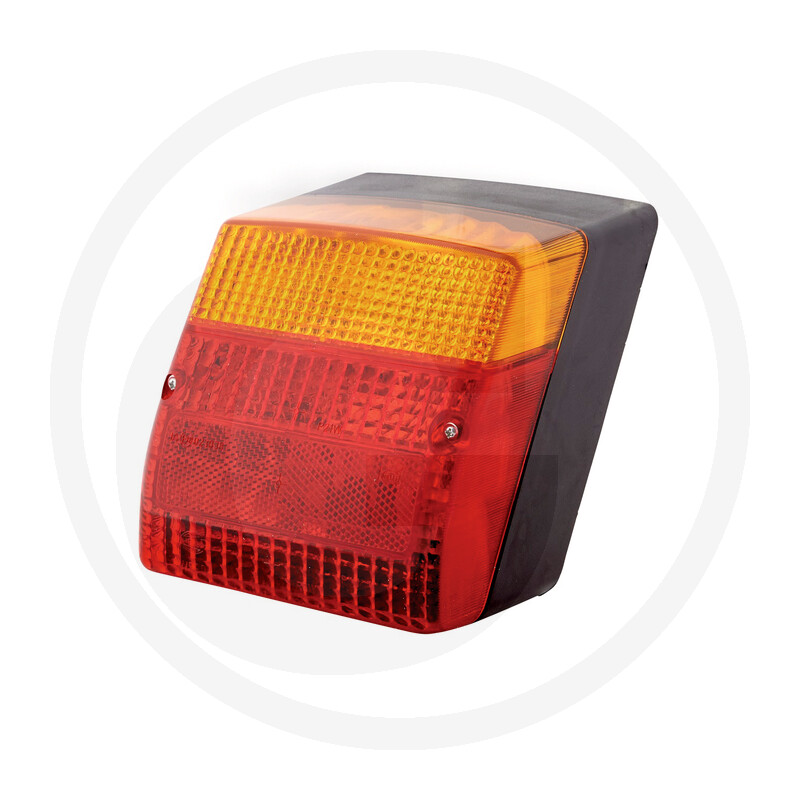

HELLA Rear light
Part no.: 4552SD 996030021
Fig. left
Further information
- Types:
- 9078, 9080M, 9080MT, 9085MT, 9086, 9090M, 9090MT, 9094, 9095MT,
9100M, 9100MT, 9105, 9105MT, 9115, 9125, 9145, 9155,
CVT 120, 130, 150, 170, 6135, 6140, 6145, 6150, 6155, 6160, 6170, 6175, 6190, 6195,
M 9078, 9083, 9086, 9094 - Bulb:
- P21W, R5W
- Colour:
- Red/yellow
- Connection:
- Circular connector
- Width (mm):
- 149
- Form:
- Rectangular
- Height (mm):
- 140
- Hole spacing (mm):
- 110
- Housing:
- Integrated
- Fixing:
- Horizontal
- Installation location:
- Right
- Protection class:
- IP3X
- Nominal voltage (V):
- 12
- Test mark:
- E12 4054, E12 7133, ECE
- Type:
- Bulb
- Light function:
- Indicator light, rear light, brake light, reflector
- Type testing:
- ADR/GGVS-geprüft, nicht SAE-geprüft
- Additional information:
- • Number of light functions: 4
• Form: 30° diagonally to the rear
• With bulbs - Bulbs included:
- Yes
- Mounting type:
- Mounting, screwed
- Housing colour:
- Black
- Weight:
- 612 g
- EAN codes:
- 4082300208023
- Catalogue:
- Electrics (p. 708)
- To be found in category:
- ElectricsLightingApplication listsAgricultural machinerySteyr
