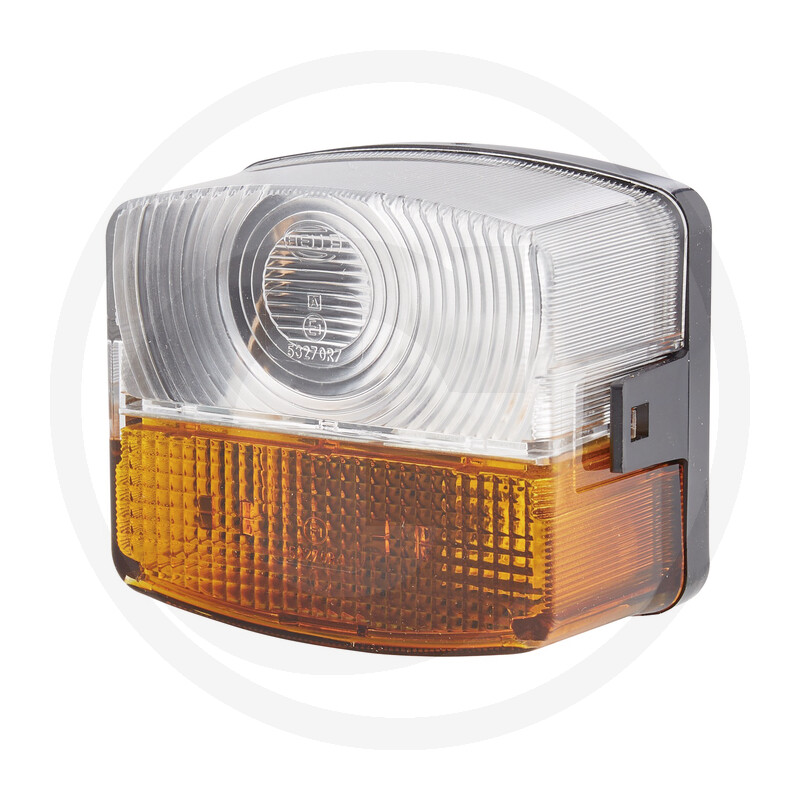

HELLA Indicator/position light
Left, to fit Claas tractors CT7701032389
Part no.: 4552BE 003182091
Fig. left
Further information
- Types:
- 743XL, 745XL, 844XL, 856XL, 956XL, 1056XL
C 55, 64, 70,
CS 48, 58
CS 68, 75 up to 0023065
CS 78, 86, 94 - Bulb:
- P21W, 12V5WS / C5W
12V21WK / R21W - Colour:
- Yellow, white
- Attachment:
- Front
- Connection:
- Blade terminal
- Width (mm):
- 95
- Form:
- Rectangular, two sides rounded
- Height (mm):
- 85
- Hole spacing (mm):
- 45
- Dimensions W x H x D (mm):
- 95 x 85 x 54
- Depth (mm):
- 54
- Fixing:
- Horizontal
- Installation location:
- Left
- Nominal voltage (V):
- 12, 24
- Test mark:
- ECE, E1 53270, ECE-R6
- Type:
- Halogen bulb
- Light function:
- With indicator light, with position light
- Additional information:
- • Number of light functions: 2
• Without bulbs - Bulbs included:
- No
- Mounting type:
- Mounting, screw connection
- Mounting position:
- Horizontal
- Weight:
- 159 g
- Fig. no.:
- 2
- EAN codes:
- 4082300049831
- Catalogue:
- Electrics (p. 626)
- To be found in category:
- ElectricsLightingApplication listsAgricultural machineryCase IH
