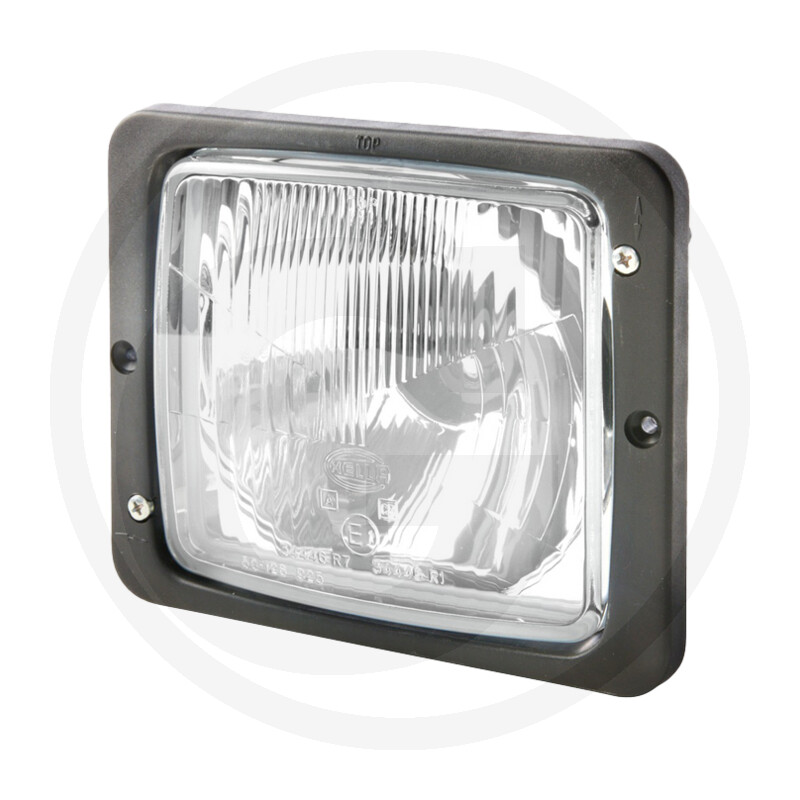

HELLA Main headlight
Left and right, to fit Case IH 3 404170 R93
Part no.: 4551AA 004109001
Further information
- Nominal voltage (V):
- 12 / 24
- Installation location:
- Left/right
- Bulb:
- 12V45/40WAS / R2
or 12V45/40W halogen / R2
24V55/50WAS / R2 (Bilux) - Bulbs included:
- No
- Light function:
- With dipped beam, with full beam
- Mounting type:
- Flush mounting
- Colour:
- Surround: black
- Width (mm):
- 173
- Height (mm):
- 144
- Material:
- Plastic, diffusing lens: glass
- Dimensions W x H x D (mm):
- 173 x 144 x 99
- Depth (mm):
- 99
- Protection class:
- IP5K4K
- Test mark:
- E1 34446, ECE
- Installation depth (mm):
- 77
- Type:
- Asymmetrical
- Additional information:
- • Number of light functions: 2
• For right-hand traffic
• Reference number: 10 - Light aperture (mm):
- 138 x 124
- Weight:
- 564 g
- EAN codes:
- 4082300043440
- Catalogue:
- Electrics (p. 731)
- To be found in category:
- ElectricsLightingMain headlightsStandard 12 VRectangular
