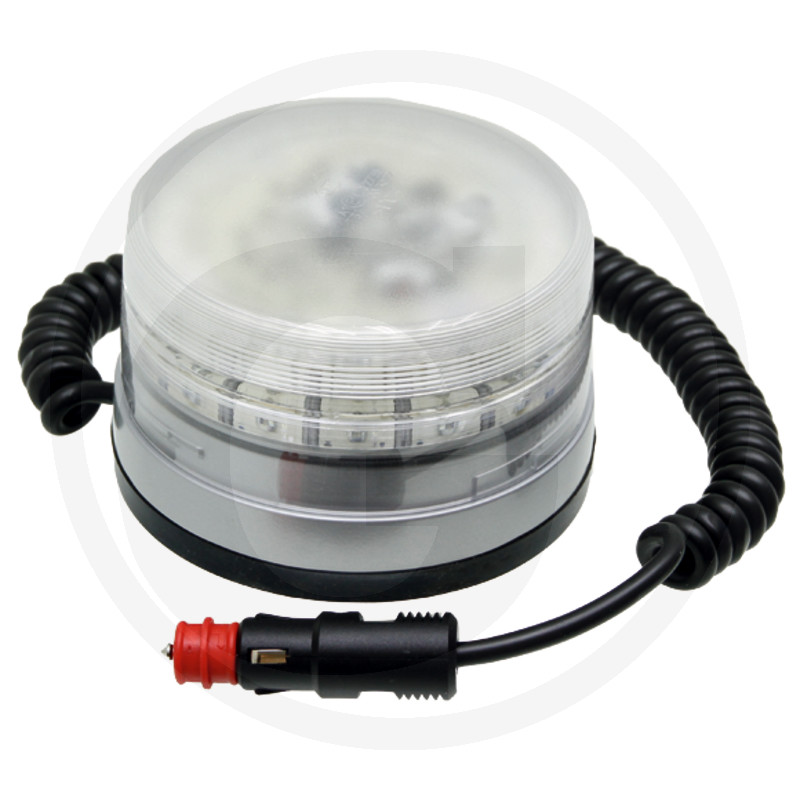

HELLA LED rotating beacon, 2XD012980021

Further information

Nominal voltage (V):

12 / 24

Bulbs included:

Yes

Light function:

Flashing

Diameter (mm):

149

Total height (mm):

95

Connection:

Spiral cable

Protection class:

IP 67, IP X9K

Colour:

Yellow

Outer Ø (mm):

149

Cable length (m):

2.5

Bulb:

LED

Material:

Housing: aluminium | Light cover: polycarbonate

Voltage (V):

10 - 30

Type:

K-LED Blizzard

Current requirement (A):

0,7 / 1,3

Test mark:

E1 004744 R65, TA1, ECE-R10: 058356, CISPR25 class 5, GGVSE/ADR

Power consumption (W):

10

Type:

LED

Additional information:

• Transparent light cover with Fresnel lens
• Polycarbonate base
• With magnetic mounting, spiral cable can be extended up to 2.5 m with 2-pin plug for cigarette lighter socket
• Operating voltage: 10 - 32 V, connection with reverse polarity protection
• Flash sequence: single, double, triple, quadruple flash

Mounting type:

Magnetic

Housing colour:

Grey

Weight:

1,12 kg

EAN codes:

4082300696806

Catalogue:

Electrics (p. 780)

To be found in category:

ElectricsLightingRotating beacons/flashing lightsRKL LED magnetic attachment
