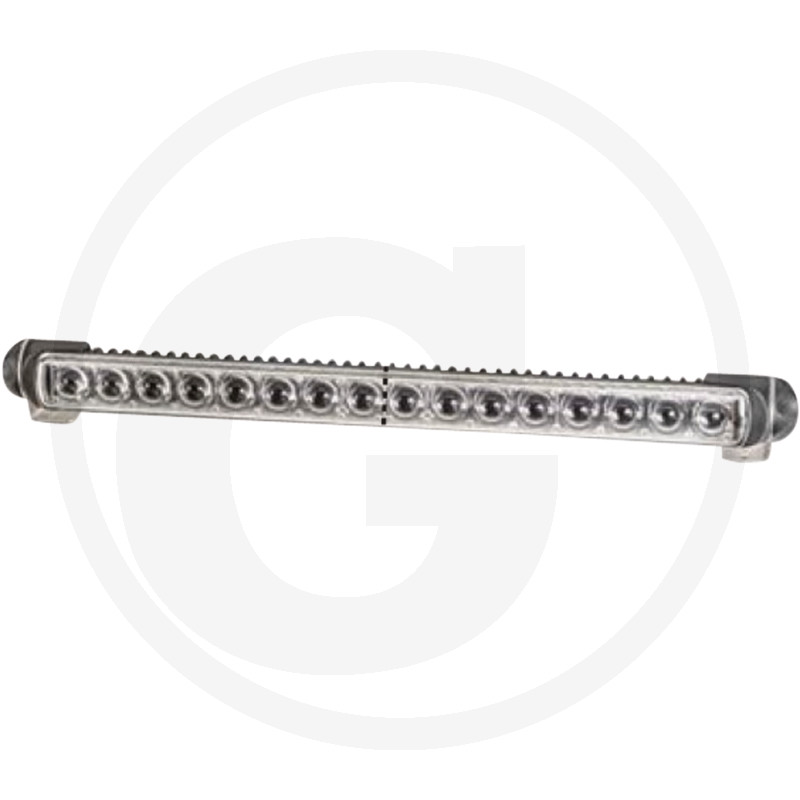

HELLA LED work light/light bar

Further information

Nominal voltage (V):

12 / 24

Voltage range (V):

9 - 33

Bulb:

LED

Bulbs included:

Yes

Light function:

Far-reaching illumination

Dimensions W x H x D (mm):

528 x 44 x 67

Mounting type:

Vertical

Connection:

Open cable ends

Material:

Housing: plastic

Protection class:

IP6K7 / IP6K9K

Width (mm):

528

Form:

Rectangular

Height (mm):

57

Current (A):

2x 1,5 (12 V) / 2x 0,75 (24 V)

Depth (mm):

67

Fixing:

Hanging, vertical

No. of LEDs:

16

Cable length (mm):

2500

Test mark:

ECE R112-B; ECE 48

Power consumption (W):

2 x 18

Number of pins:

3

Type:

LED

Mounting size (mm):

57

Additional information:

For off-road use, submersible (up to 1 m water depth for up to 30 minutes), drilling template included

Effective luminous flux (lm):

≈ 1850

Theoretical luminous flux (lm):

-

EMC:

Radio interference suppression according to ECE R10

Light colour (K):

6000

Operating temperature (°C):

-40 / +60

Housing colour:

Black

Weight:

780 g

EAN codes:

4082300685275

Catalogue:

Electrics (p. 755)

To be found in category:

ElectricsLightingWork lightsLED light bars
