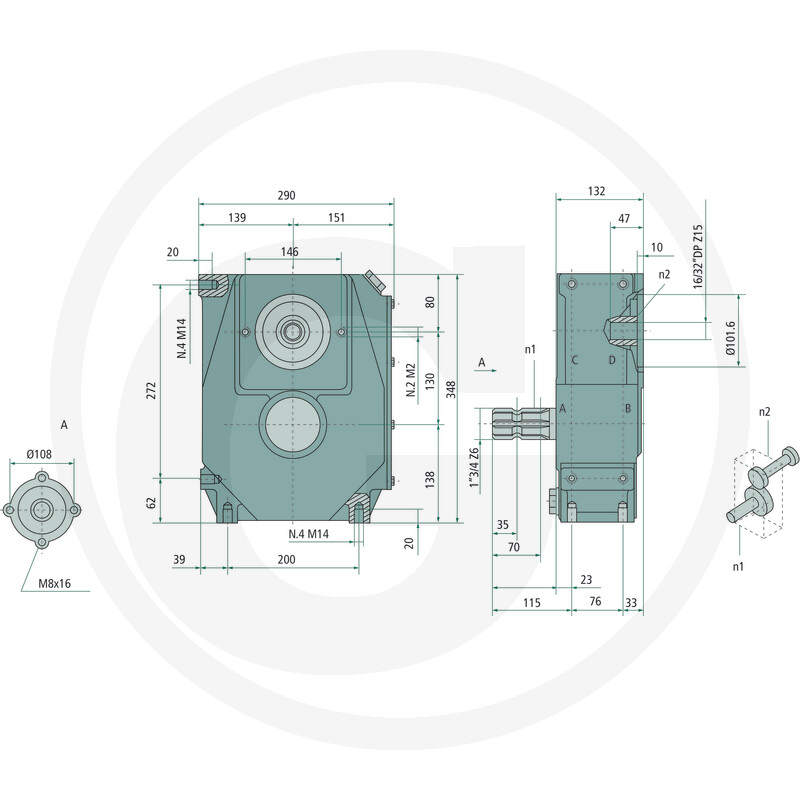

BONDIOLI & PAVESI Spur gear M10

Further information

Transmission:

1:3,8

n1 (1/min.):

540

n2 (1/min.):

2052

Power max. (PS/kW):

540 1/min.: 85 / 62,5

Torque (Nm):

540 rpm: n1 = 1112, n2 = 292

Description:

• Cast iron housing
• Gearing case-hardened
• Speed limit: approx. 3000 rpm
• Oil filling quantity: approx. 2.5 kg
• Oil type: SAE90 EP
• A torque arm should be considered as an anti-twist device

Application:

• Reversing gearbox with connection
• Gear pumps 16/32" 15 teeth
• Axle spacing 130 mm

Maintenance:

1st oil change after 50 operating hours, then at intervals of 500-800 hours, or once a year
