BONDIOLI & PAVESI Gearbox

Further information

Transmission:

1:1

n1 (1/min.):

540

n2 (1/min.):

540

Power max. (PS/kW):

540 1/min.: 55 / 40

Torque (Nm):

540 rpm: n1 = 700, n2 = 700

Description:

• Cast iron housing
• Bevel gear pairing straight-toothed and case-hardened
• Speed limit: n = 2000 rpm
• Weight: approx. 18 kg (without oil)
• Oil filling quantity: approx. 0.95 l
• Oil type: SAE90 EP
• Supplied without oil

Application:

• Mulcher
• Row cultivators
• General drives in agricultural, construction and forestry equipment

Maintenance:

1st oil change after 50 operating hours, then at intervals of 500-800 hours, or once a year

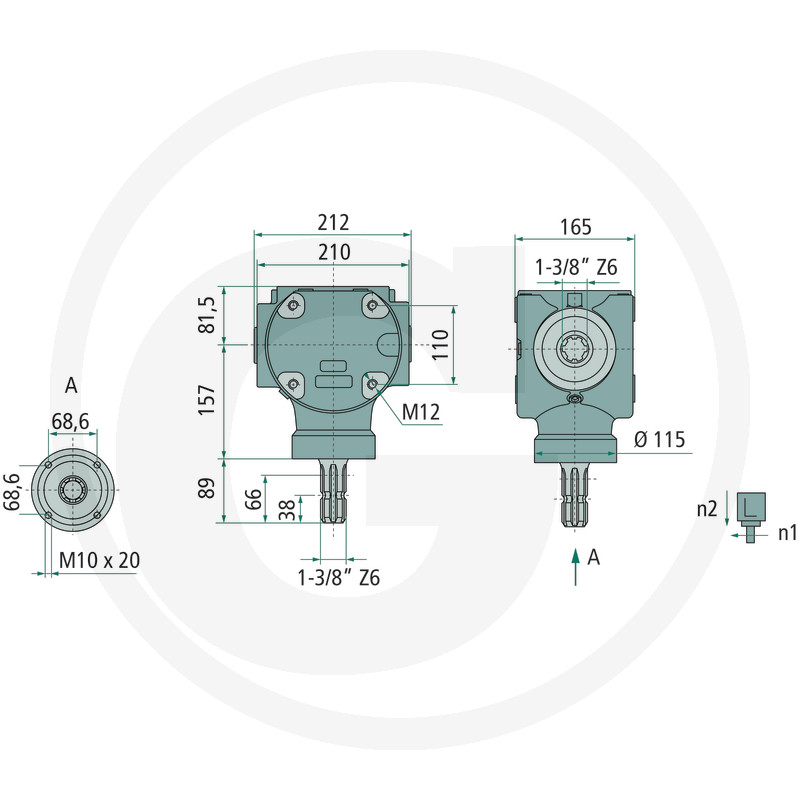

Fig. no.:

1

Catalogue:

PTO shafts & drive technology (p. 496)
