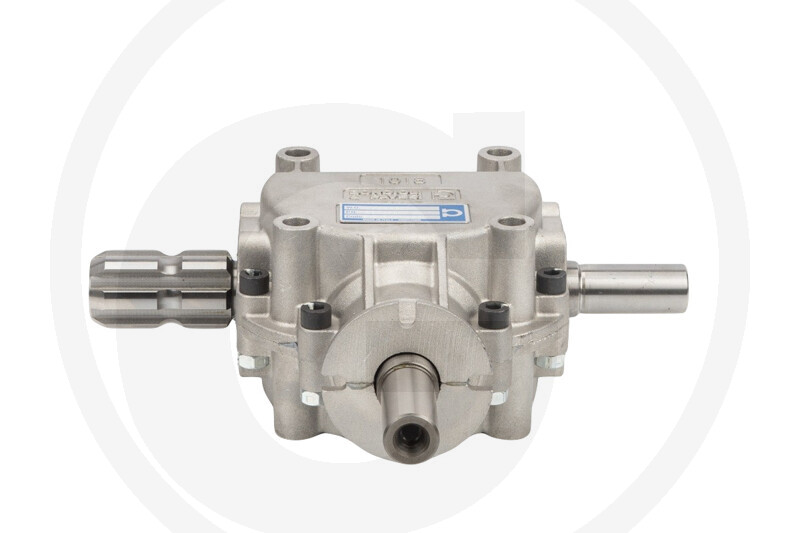

BONDIOLI & PAVESI Gearbox
Part no.: 415S1018190G331
Further information
- Transmission:
- 1,9:1
- n1 (1/min.):
- 540
- n2 (1/min.):
- 270
- Power max. (PS/kW):
- 540 1/min.: 9 / 7
1000 1/min.: 14 / 10 - Torque (Nm):
- 540/1000 rpm:
n1: 117 / 98
n2: 222 / 187 - Description:
- • Cast aluminium housing
• Bevel gear pairing straight-toothed and case-hardened
• Speed limit: n = 3000 rpm
• Oil filling quantity: approx. 0.25 l
• Oil type: SAE90 EP
• Supplied without oil - Application:
- • Sweepers
• General drives in gardening equipment - Maintenance:
- 1st oil change after 50 operating hours, then at intervals of 500-800 hours, or once a year
- Weight:
- 4,06 kg
