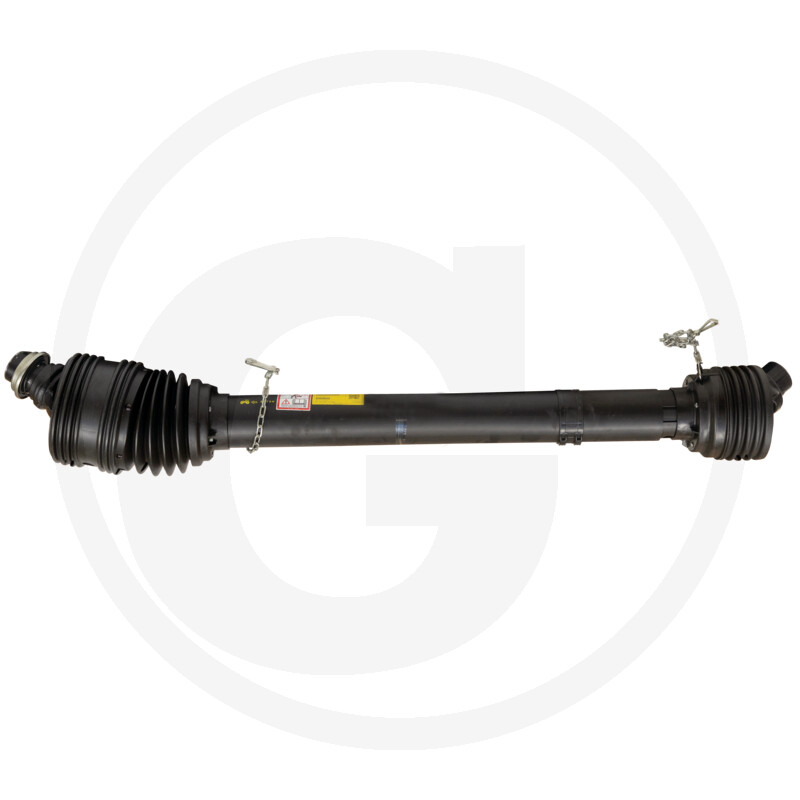

BONDIOLI & PAVESI PTO shaft, size: SH, length: 1210 mm
Part no.: 415DSHR121C1WP0002X
Further information
- Size:
- SH
- Tractor version:
- 1 3/4" 20 splines
- Implement version:
- 1 3/4" 6 splines
- Lz (mm):
- 1210
- Profile:
- Italian system
- Type:
- SFT series, 80° wide angle at one end
- Locking system:
- Push-pull lock/clamping bolt
- Additional information:
- Operating instructions included
- Wide angle:
- One end
- Universal joint size A profile (mm):
- 34,9 x 110
- Universal joint size B profile (mm):
- 42 x 107,5
- bis PS / kW (540 rpm):
- 132/97
- bis PS / kW (max. 1000 rpm):
- 200/147
- Nm (540 rpm):
- 1717
- Nm (1000 rpm):
- 1405
- Weight:
- 51,00 kg
