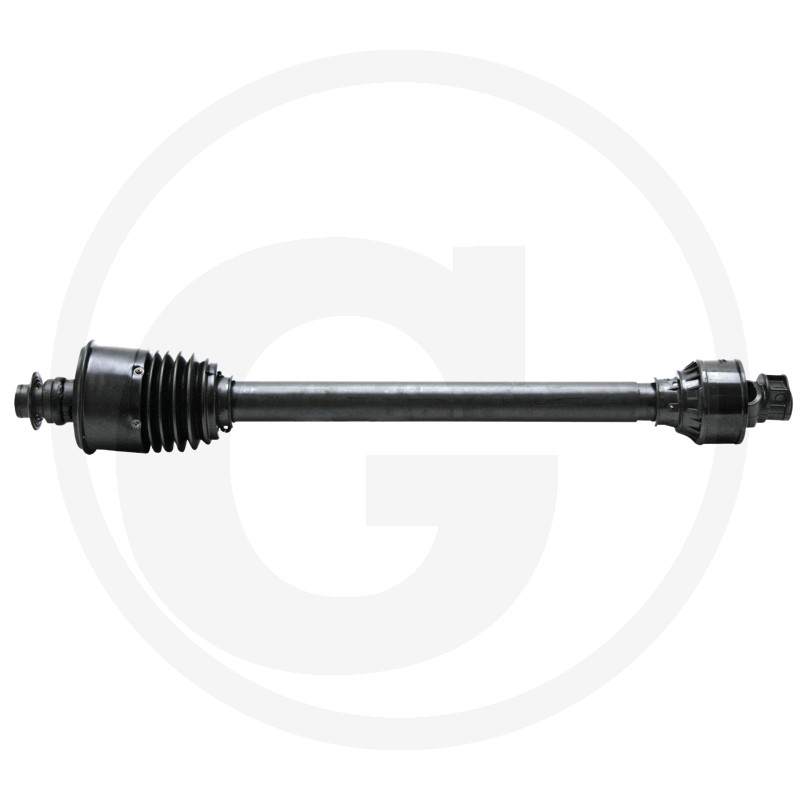

BONDIOLI & PAVESI PTO shaft, size: S9, length: 1210 mm

Further information

Size:

S9

Tractor version:

1 3/8" 6 splines

Implement version:

1 3/4" 6 splines

Torque (Nm):

5000

Lz (mm):

1210

Profile:

Italian system

Max. speed (1/min.):

1000

Type:

SFT series PTO shaft, 80° wide angle at one end

Version:

For big baler
Implement: tapered clamping bolt
Tractor: 80°

Locking system:

Push-pull lock/clamping bolt

Additional information:

Operating instructions included

Wide angle:

One end

Universal joint size A profile (mm):

30,2 x 122

Universal joint size B profile (mm):

34,9 x 106

bis PS / kW (540 rpm):

110/81

bis PS / kW (max. 1000 rpm):

166/122

Nm (540 rpm):

1431

Nm (1000 rpm):

1166

Weight:

44,00 kg

Catalogue:

PTO shafts & drive technology (p. 238)
