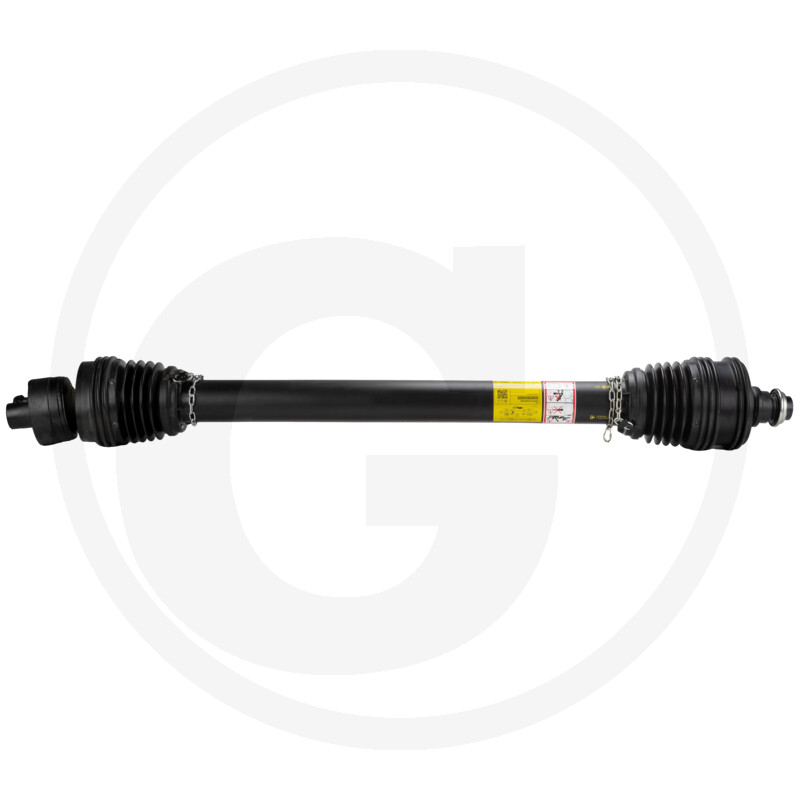

BONDIOLI & PAVESI PTO shaft, size: H7, length: 1210 mm
Part no.: 415DH7R121CEWQ7K02
Further information
- Size:
- H7
- Tractor version:
- 1 3/8" 6 splines
- Implement version:
- 1 3/4" 6 splines
- Lz (mm):
- 1210
- Profile:
- Italian system
- Connection:
- Cam-type cut-out clutch
- Lock:
- Implement: tapered clamping screw/tractor: automatic lock
- Type:
- Series SFT WW 80°/50° with cam clutch
2000 Nm
e.g. for loading wagons - Version:
- Implement: tapered clamping bolt
Tractor: automatic lock - Locking system:
- Automatic lock/clamping bolt
- Additional information:
- Operating instructions included
- Universal joint size A profile (mm):
- 27 x 100
- Universal joint size B profile (mm):
- 27 x 100
- Weight:
- 47,00 kg
- Catalogue:
- PTO shafts & drive technology (p. 237)
