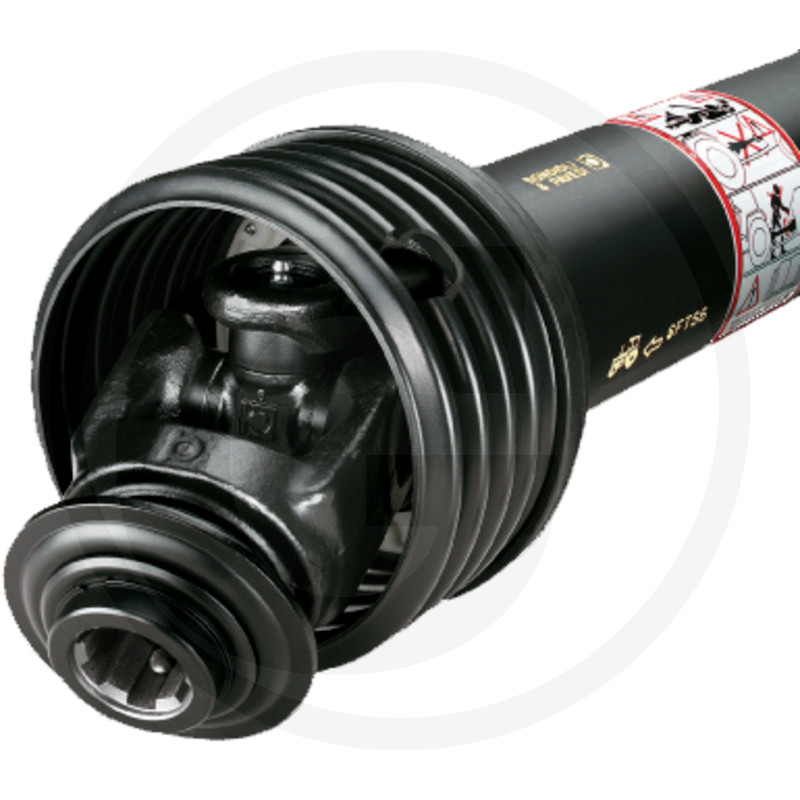

BONDIOLI & PAVESI PTO shaft size: S9, length: 860 mm
Part no.: 415CS9N086CER09R09
Further information
- Size:
- S9
- Lz (mm):
- 860
- Profile:
- Italian system
- Profile pair:
- 58.5 x 4.5 / 66.0 x 3.6
- Type:
- Standard SFT series
- A (profile):
- 1 3/4" 6 splines
- B (profile):
- 1 3/4" 6 splines
- Locking system:
- quick-release pin/quick-release pin
- Additional information:
- Operating instructions included
- Universal joint size A profile (mm):
- 34,9 x 106
- Universal joint size B profile (mm):
- 34,9 x 106
- bis PS / kW (540 rpm):
- 110/81
- bis PS / kW (max. 1000 rpm):
- 166/122
- Nm (540 rpm):
- 1431
- Nm (1000 rpm):
- 1166
- Service-Center form:
- Click here
Special item: cannot be returned or cancelled. Additional shipping costs may be incurred. Delivery time subject to availability from the supplier.
