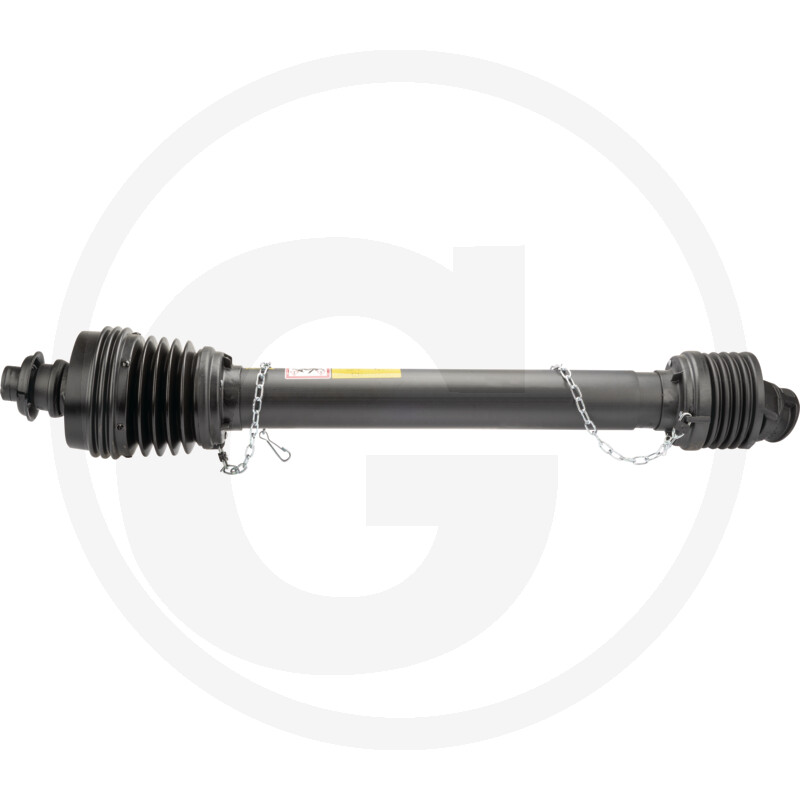

BONDIOLI & PAVESI PTO shaft size: S8, length: 860 mm

Further information

Size:

S8

Tractor version:

1 3/8" 6 splines

Implement version:

1 3/8" 6 splines

Lz (mm):

860

Profile:

Italian system

Type:

SFT series, 50° wide angle at one end

Version:

Implement: Quick-release pin
Tractor: 50°, push-pull lock

Locking system:

Push-pull lock/quick-release pin

Areas of application:

e.g. for side mulchers, slurry mixers

Wide angle:

One end

Universal joint size A profile (mm):

30,2 x 106

Universal joint size B profile (mm):

34,9 x 93,5

bis PS / kW (540 rpm):

90/66

bis PS / kW (max. 1000 rpm):

136/100

Nm (540 rpm):

1171

Nm (1000 rpm):

956

Weight:

26,65 kg
