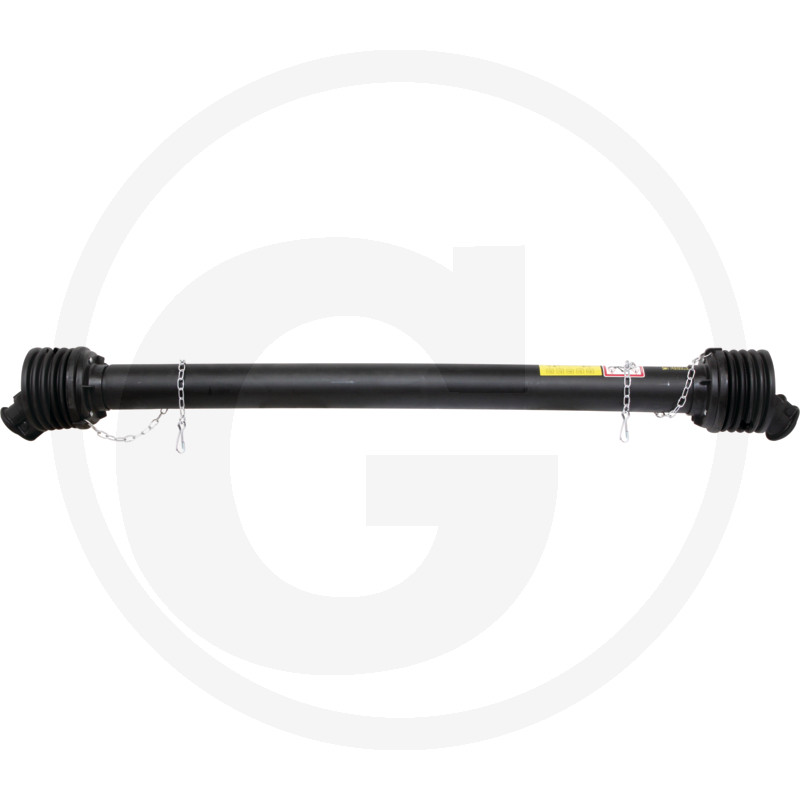

BONDIOLI & PAVESI PTO shaft

Further information

Size:

S6

Tractor version:

1 3/8" 6 splines

Implement version:

1 3/8" 6 splines

Lz (mm):

710

Profile:

Italian system

Profile pair:

46.9 x 4.5 / 53.9 x 3.25

Type:

Standard SFT series

A (profile):

1 3/8" 6 splines

B (profile):

1 3/8" 6 splines

Locking system:

quick-release pin/quick-release pin

Additional information:

Operating instructions included

Universal joint size A profile (mm):

30,2 x 79,4

Universal joint size B profile (mm):

30,2 x 79,4

bis PS / kW (540 rpm):

55/40

bis PS / kW (max. 1000 rpm):

83/61

Nm (540 rpm):

716

Nm (1000 rpm):

583

Service-Center form:

Click here
