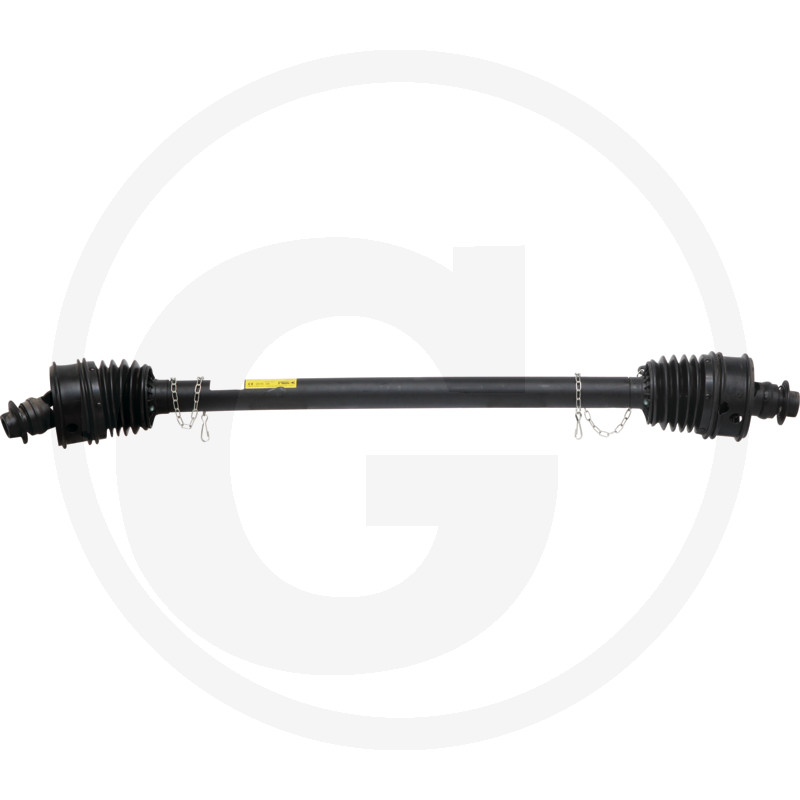

BONDIOLI & PAVESI PTO shaft size: G7, length: 860 mm

Further information

Size:

G7

Tractor version:

1 3/8" 6 splines

Implement version:

1 3/8" 6 splines

Lz (mm):

860

Profile:

Italian system

Type:

Global series wide angle 80°/80°

Locking system:

Push-pull lock/push-pull lock

Wide angle:

Both ends

Universal joint size A profile (mm):

30,2 x 91,5

Universal joint size B profile (mm):

30,2 x 91,5

bis PS / kW (540 rpm):

64/47

bis PS / kW (max. 1000 rpm):

100/74

Nm (540 rpm):

830

Nm (1000 rpm):

710
