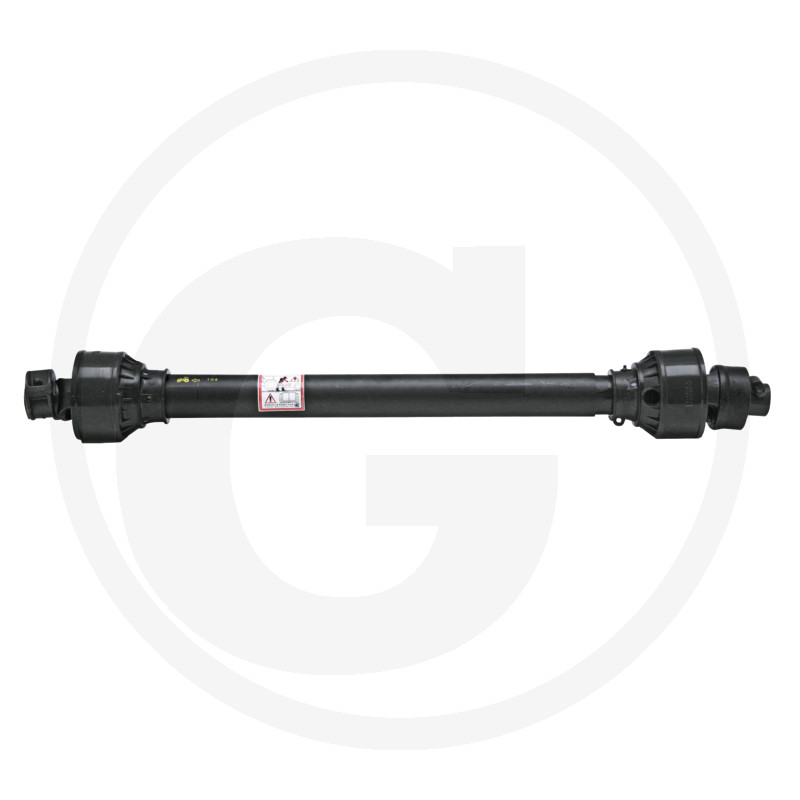

BONDIOLI & PAVESI PTO shaft, size: G7, length: 860 mm

Further information

Size:

G7

Tractor version:

1 3/8" 6 splines

Implement version:

1 3/8" 6 splines

Lz (mm):

860

Profile:

Italian system

Connection:

Overrunning clutch

Type:

Global series with overrunning clutch

Version:

Implement: tapered clamping bolt
Tractor: quick-release pin

Locking system:

Quick-release pin/tapered clamping bolt

Additional information:

Operating instructions included

Universal joint size A profile (mm):

30,2 x 91,5

Universal joint size B profile (mm):

30,2 x 91,5

bis PS / kW (540 rpm):

64/47

bis PS / kW (max. 1000 rpm):

100/74

Nm (540 rpm):

830

Nm (1000 rpm):

710

Weight:

19,00 kg

Catalogue:

PTO shafts & drive technology (p. 239)

Service-Center form:

Click here

To be found in category:

PTO shafts & drive technologyBondioli & Pavesi - ByPy PTO shafts and replacement partsPTO shaftsGlobal series with clutchGlobal series PTO shafts with overrunning clutch
