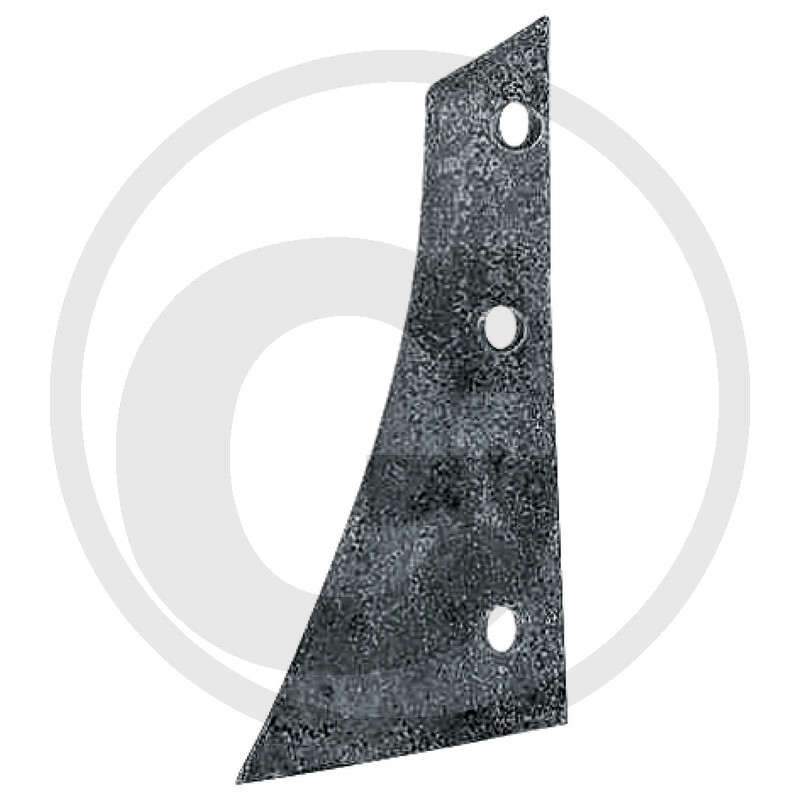

Kverneland Mouldboard front part

Further information

Dimensions L x W x H (mm):

125 x 112 x 70

Total length (mm):

125

Assembly notes:

Mouldboards and slats:
When changing mouldboards and slats, tighten all bolts to prevent stresses and cracks in the components. Use cardboard discs to compensate for mouldboard and mouldboard front part dimensional tolerances in order to prevent stresses and cracks in the components. Do not tighten bolts and nuts with a compressed air tool as this may damage the wearing part (stress cracks).

Weight:

1,74 kg

Fig. no.:

9

To be found in category:

Tillage & seeding technologyKVERNELAND OriginalPlough and replacement partsPlough bodiesPlough body no. 19
