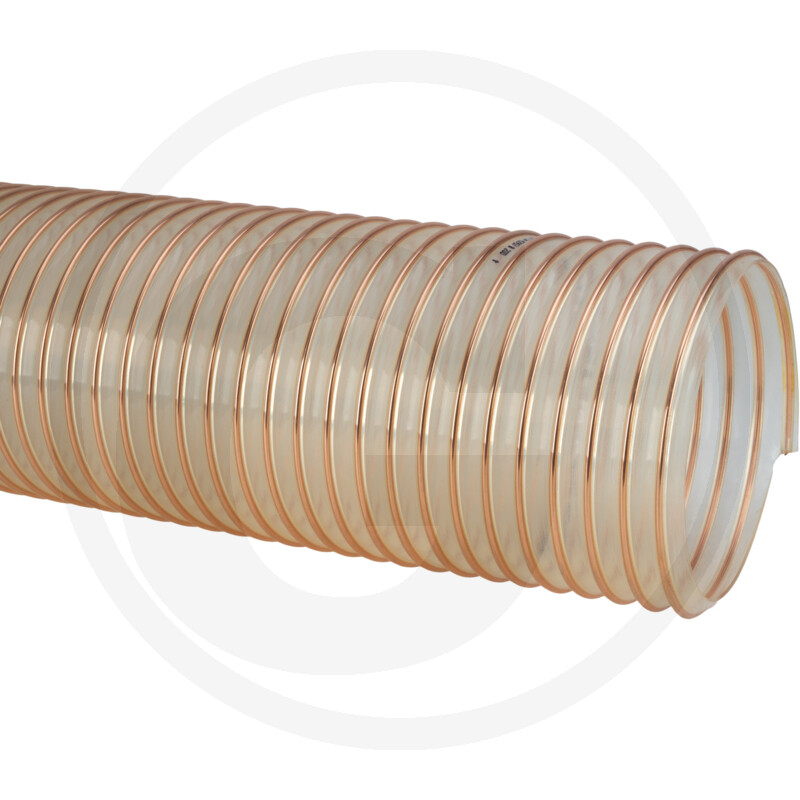

Continental Delivery hose inner Ø 201 mm / 8"
By the metre
Part no.: 4053550200
Further information
- Inner Ø (mm):
- 201
- Inner Ø (inches):
- 8"
- Outer Ø (mm):
- 212
- Length (m):
- Meterware
- Bending radius (mm):
- 400
- Vacuum (bar):
- 0,2
- Wall thickness (mm):
- 1,6
- Temperature range (°C):
- -40°C - +90°C
- Wire thickness (mm):
- 2.5 x 3
- Hose type:
- Spiral hose
- Food safe:
- No
- Wire Ø (mm):
- 2,5x3
- Weight (g/m):
- 3200
- Technical data:
- PU-Saug- und Druckschlauch mit einer eingebetteten verkupferten Stahlspirale. Mittelschwere Baureihe, geeignet für Staub, Späne und abrasive Materialien. Lebensmittelqualität(FDA 21 CFR 177.1680 für trockene Lebensmittel).
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 4,10 kg
Heavy-duty version, inside smooth, conductive, microbe-resistant, flame-retardant
Application:
• Flexible hose for high throughput of abrasive powder, bulk material, granulates and gases
• Plastics industry, conveying of granulates and powders: granulate conveyor, vacuum conveyor, dosing system, big bag filling and emptying, shredder, grinder, extruder, injection moulding machine
• Printed circuit board drilling machine (PCB)
• Powdering, powder dusting: e.g. printing industry
• Offset printing machines: air supply, air supply cabinet
• Industrial vacuum cleaner, vacuum cleaner
• Potentially explosive area
• Agriculture, conveying of seeds and fertiliser: drill, seed drill
• Agriculture: pneumatic grain conveyors
• Construction industry: Road milling machine
• Raw material delivery hose for powder, granules, sand, quartz, gravel, cullet and chips
• Compressor, side channel compressor, vacuum pump, pressure pump, pump
• Paper factory, paper industry, packing machine: side trim extraction
• Surface treatment: shot blasting media/sand blasting media recirculation e.g. to blasting cabinet, shipyards, strippers, floor milling machines, grinding machines
• Municipal machines: sweeper, lawn mower, embankment mower, foliage vacuum /foliage collector
• Vacuum lifter, vacuum lifting device: vacuum supply line
Properties:
● Smooth inside
● Flow-optimised
● Flexible and lightweight
● Increased pressure and vacuum resistance
● High tensile and tear strength
● Good oil and petrol resistance
● Good chemical resistance
● Good UV and ozone resistance
● Anti-kink
Materials:
• Wall: special premium ester polyurethane
• spiral: spring steel wire
Temperature range: • approx. -40 °C to approx. +90 °C
• Short-term up to approx. +125 °C
Design:
• Spring steel wire firmly cast into the wall
• Flow-optimised profile
• Wall thickness approx. 1.4 - 1.5 mm
Sold by the metre!
Application:
• Flexible hose for high throughput of abrasive powder, bulk material, granulates and gases
• Plastics industry, conveying of granulates and powders: granulate conveyor, vacuum conveyor, dosing system, big bag filling and emptying, shredder, grinder, extruder, injection moulding machine
• Printed circuit board drilling machine (PCB)
• Powdering, powder dusting: e.g. printing industry
• Offset printing machines: air supply, air supply cabinet
• Industrial vacuum cleaner, vacuum cleaner
• Potentially explosive area
• Agriculture, conveying of seeds and fertiliser: drill, seed drill
• Agriculture: pneumatic grain conveyors
• Construction industry: Road milling machine
• Raw material delivery hose for powder, granules, sand, quartz, gravel, cullet and chips
• Compressor, side channel compressor, vacuum pump, pressure pump, pump
• Paper factory, paper industry, packing machine: side trim extraction
• Surface treatment: shot blasting media/sand blasting media recirculation e.g. to blasting cabinet, shipyards, strippers, floor milling machines, grinding machines
• Municipal machines: sweeper, lawn mower, embankment mower, foliage vacuum /foliage collector
• Vacuum lifter, vacuum lifting device: vacuum supply line
Properties:
● Smooth inside
● Flow-optimised
● Flexible and lightweight
● Increased pressure and vacuum resistance
● High tensile and tear strength
● Good oil and petrol resistance
● Good chemical resistance
● Good UV and ozone resistance
● Anti-kink
Materials:
• Wall: special premium ester polyurethane
• spiral: spring steel wire
Temperature range: • approx. -40 °C to approx. +90 °C
• Short-term up to approx. +125 °C
Design:
• Spring steel wire firmly cast into the wall
• Flow-optimised profile
• Wall thickness approx. 1.4 - 1.5 mm
Sold by the metre!
