GRANIT Delivery arm
OSSK 2
Part no.: 40504053980
Further information
- Inner Ø (mm):
- 110
- Outer Ø (mm):
- 130
- Working pressure (bar):
- 2
- Burst pressure (bar):
- 6
- Length (m):
- 20
- Bending radius (mm):
- 550
- Vacuum (bar):
- 0,9
- Wall thickness (mm):
- 10
- Temperature range (°C):
- -30 °C - +85 °C
- Hose type:
- Rubber suction and pressure hose
- Food safe:
- No
- Roll length (m):
- 20
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 6,10 kg

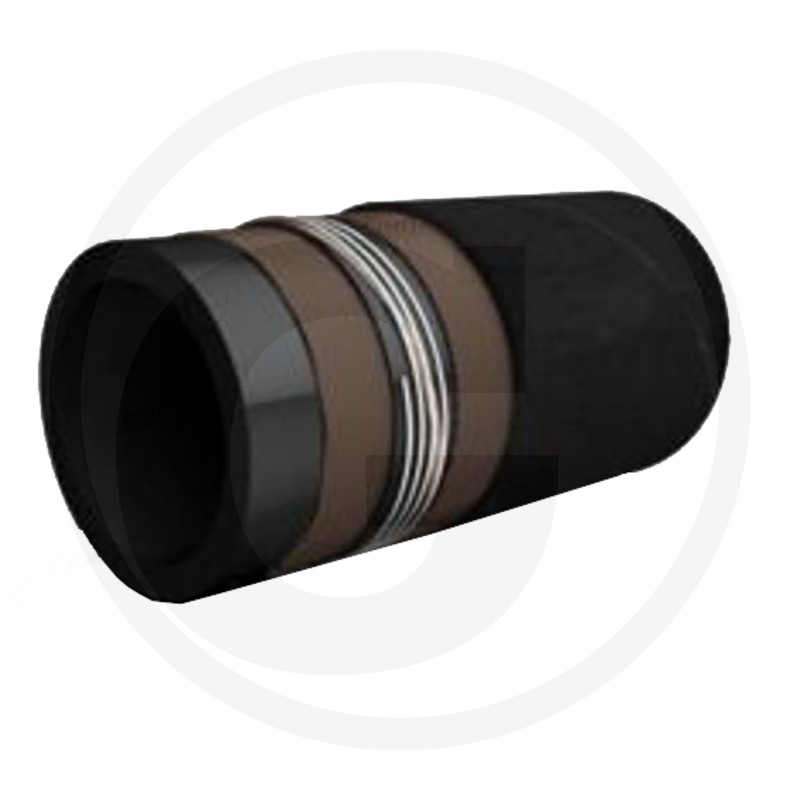

Properties:
• Interior: NBR (oil-resistant rubber compound), black, smooth
• Inlay: high-tensile textile cord with steel wire spiral and copper braid
• Cover: CR (chloroprene), black, smooth with fabric printing
• Spiral-free end sleeves
• Temperature range: -30 °C to +85 °C
Application:
Suitable for use in sewer cleaning in conjunction with the extraction and conveying of abrasive media, sludge and wastewater. Unlike the SSK 2, the OSSK 2 is oil-resistant. Thanks to the chloroprene (CR) used in the cover, the hose is oil-resistant, weather-resistant and, above all, fire-retardant.
• Interior: NBR (oil-resistant rubber compound), black, smooth
• Inlay: high-tensile textile cord with steel wire spiral and copper braid
• Cover: CR (chloroprene), black, smooth with fabric printing
• Spiral-free end sleeves
• Temperature range: -30 °C to +85 °C
Application:
Suitable for use in sewer cleaning in conjunction with the extraction and conveying of abrasive media, sludge and wastewater. Unlike the SSK 2, the OSSK 2 is oil-resistant. Thanks to the chloroprene (CR) used in the cover, the hose is oil-resistant, weather-resistant and, above all, fire-retardant.
Fixed lengths (see roll length)
Special item: cannot be returned or cancelled. Additional shipping costs may be incurred. Delivery time subject to availability from the supplier.
