Sime Reflex 60

Further information

Version:

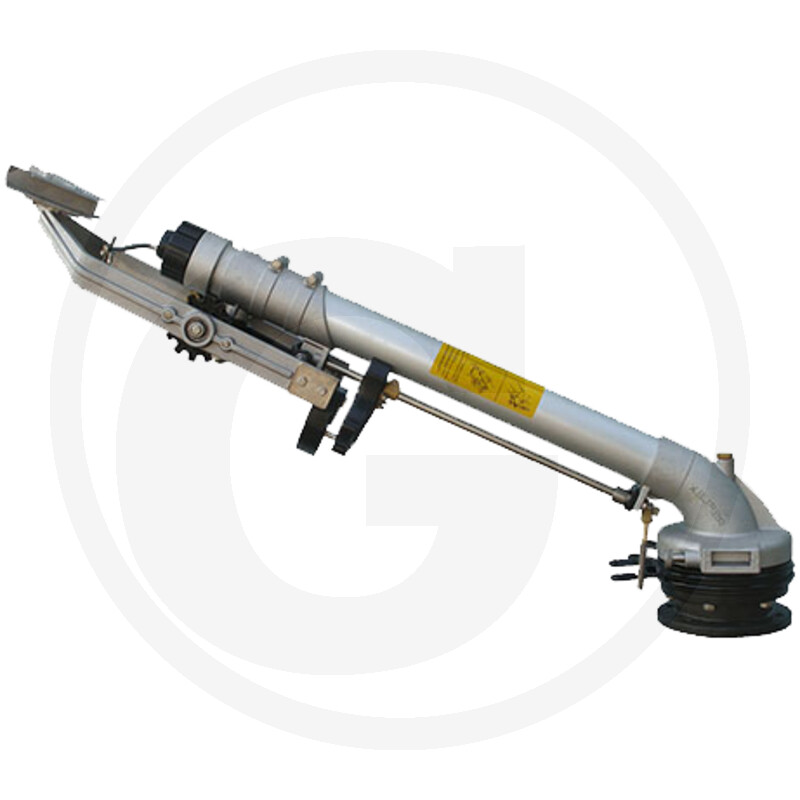

The Reflex 60 is a medium- and long-range sprinkler. It can be used as a circle or sector sprinkler. Thanks to its slow return, it is suitable for sprinkler irrigation machines, fixed installations and for cultivation of all types. The sprinkler function is based on soft and quiet movements, meaning that all vibrations and recoil are avoided that would cause wagons or carriages to tip. The sprinkler has a special adjustable jet breaker to ensure optimum water distribution.

Connection:

6-hole 78 x 130 mm

Throwing range (m):

32.5 - 65

Nozzle size (mm):

16 - 34

Water usage (m³/h):

16,5 - 114,8

Technical data:

• Nozzle size: 16 - 34 mm
• Water consumption (m³/h): 16.5 - 114.8 m³/h
• Throwing distance: 32.5 - 65 m
• Connection flange: 6-hole 78 x 130 mm
• Tilt angle (°): 25

Bending angle:

25°

Weight:

12,03 kg

Catalogue:

Irrigation & sprinkling (p. 656)
