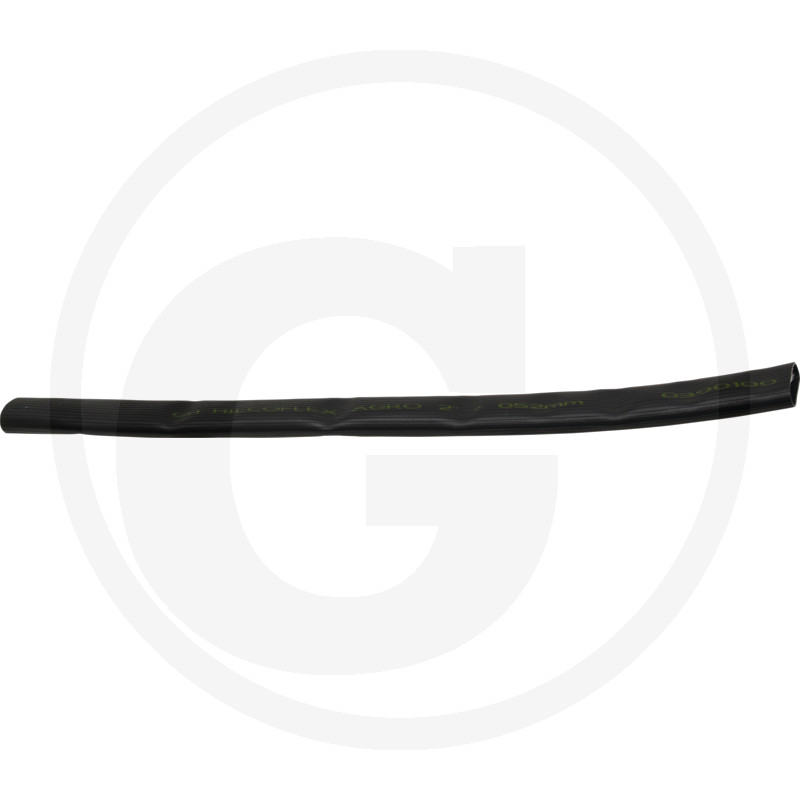

GOLLMER & HUMMEL Hose
Hilcoflex Agro
Part no.: 40504053739
Further information
- Inner Ø (mm):
- 65
- Inner Ø (inches):
- 2 1/2"
- Outer Ø (mm):
- 71,6
- Working pressure (bar):
- 16
- Burst pressure (bar):
- 50
- Length (m):
- Meterware
- Operating pressure max. (bar):
- 20
- Wall thickness (mm):
- 3,3
- Temperature range (°C):
- -20 °C - +80 °C
- Version:
- Tensile strength 6300 kg
- Hose type:
- Flat hose
- Food safe:
- No
- Roll length (m):
- 100
- Weight (kg/m):
- 0,75
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- To be found in category:
- Fertiliser spreading, slurry & biogas technologyPipes and hosesHosesFlat hosesHilcoflex Agro
The Hilcoflex Agro and Hilcoflex Agro Extra Smooth are agricultural hoses with a rubberised interior and exterior.
Application:
• Irrigation, especially pivot systems
• Slurry hose
• Sludge and wastewater discharge
• Transport hose for irrigation and drainage
• For heavy-duty applications
Advantages:
• Unrivalled resistance to ageing and ozone
• Excellent abrasion properties, even on hard ground
• Very good resistance to fertilisers, agricultural chemicals and microorganisms
• Very high tensile strength, low pressure loss, low elongation
• Excellent adhesion between rubber coating and fabric inlay
• Robust and durable
Properties:
Fabric inlay:
• Warp: polyester, high-strength, reinforced version
• Weft: polyamide/polyester; circular woven
• The special fabric construction ensures outstanding bond strength, tight bending radii and a significantly lower pressure loss compared with a 100% polyester fabric inlay
• Very low elongation under pressure thanks to special weaving and vulcanisation process
• Completely embedded in the rubber coating, providing optimum protection against mechanical damage
Internal and external rubber coating:
• High-quality NBR/PVC blend, pressed through the textile inlay in a special single-stage extrusion process
• special mixture additives provide superior ageing and ozone resistance
• Interior: very smooth for minimal pressure loss
• Exterior: reinforced cover and strong longitudinal ribs for high abrasion resistance
Operating pressure:
Specifications only apply to the hose (medium: water, 20 °C). For hoses with couplings, the operating pressure may be lower than indicated above due to the rated pressure of the couplings or the type of installation. With compressed air, the maximum operating pressure is 25% of the burst pressure.
Tensile strength: The maximum tensile load during continuous operation should not exceed 1/3 of the tensile strength.
Temperature range: Continuous operation -20 °C to +80 °C (water), temporarily up to +100 °C (water)
Colour: black
Sold by the metre!
